HVG OTHER INDUSTRIAL EQUIPMENT 0052

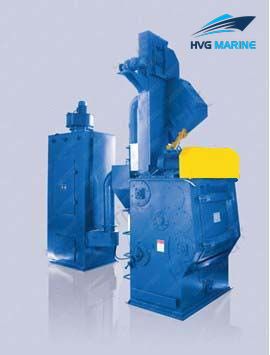

HVG OTHER INDUSTRIAL EQUIPMENT 0052: Rubber Belt Abrasive Blasting Plant

Q32 series rubber belt abrasive blasting plant is used for surface cleaning, rust removing and surface intensification of various middle and small-size casting, forging and workpieces. It is suitable for different production scale and can also be used in conjunction with the continuous conveyor components to form the production of clean-up lines.

Q32 series rubber belt abrasive blasting plant has the advantages of advanced design, reasonable structure, little energy consumption and high efficiency. It is the ideal blast cleaning equipment for machines.

Technical specification:

Technical Details:

Parameter	Unit	Q326	Q3210	QR3210
Productivity	T/H	0.6-1.2	3-5	1.5-2.5
Loading Weight	kg	200	800	600
Maximum Weight of One Piece	kg	10	15	30
Diameter of the Roller	mm	650	1000	1000
Available Capacity		0.15	0.4	0.3
Pill Impelling Volume	kg/min	100	250	250
Power Air Volume		2200	6000	5000
Power Dissipation	kw	12.6	32.6	24.3
Outline Dimensions	mm	368116505800	364429265856	397226004768
Machine Total Weight	kg	2340	5843	7400
