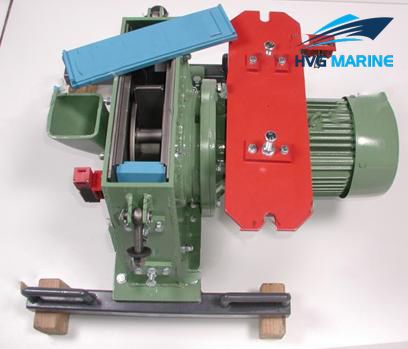

HVG OTHER INDUSTRIAL EQUIPMENT 0046: Belt-wheel Plate Impeller Head

Shot Blasting Machine Part

Belt-wheel blast wheel is conventional, large abrasive flow rate and good cleaning effect etc. It is a essential part of the airless shot blast cleaning equipment.
Because of the working sites, Blades, back plates and some other spare parts, as the wearing parts, need to be replaced regularly to make sure the operation of the machine.

Model	Impeller Speed	Shot Speed	Radial Scattering Angle	Axial Scattering Angle	Shot-blasting Capacity	Motor Power	Directional set opening Angle
Model	r/min	m/s	Radial Scattering Angle	Axial Scattering Angle	kg/min	kw	Directional set opening Angle
Q3023Ⅰ	2600	63	-60°	-8°	190	11	60°
Q3023Ⅱ	2600	63	-60°	-8°	190	11	60°
Q3024Ⅰ	2350	67	-60°	-8°	240	15	60°
Q3024Ⅱ	2350	67	-60°	-8°	240	15	60°
Q3025Ⅰ	2200	66	-60°	-8°	270	18.5	60°
Q3025Ⅱ	2200	66	-60°	-8°	270	18.5	60°
Q3025Ⅰ	2200	66	-60°	-8°	320	22	60°
Q3025Ⅱ	2200	66	-60°	-8°	320	22	60°
Q3110	2300	70	-60°	-8°	100	7.5	60°
Q3110E	2350	70	-60°	-8°	100	11	60°
Q3113B	2350	65	-60°	-8°	190	11	60°
Q305	2200	80	-60°	-8°	120	11	60°
Q305A	2200	80	-60°	-8°	120	11	60°
Q305B	2200	80	-60°	-8°	120	11	60°
Q304A	2300	70	-60°	-8°	100	7.5	60°
Q0511Ⅰ	2250	62	-60°	-8°	280	22	60°
Q0511Ⅱ	2250	62	-60°	-8°	280	22	60°
Q063	2800	67	-60°	-8°	100	5.5	60°
Q034Ⅰ	2600	67	-60°	-8°	240	15	60°
Q034Ⅱ	2600	67	-60°	-8°	240	15	60°
Q034Ⅰ	2600	67	-60°	-8°	300	18.5	60°
Q034Ⅱ	2600	67	-60°	-8°	300	18.5	60°
Q035Ⅰ	2250	76	-60°	-8°	400	30	60°
Q035Ⅱ	2250	76	-60°	-8°	400	30	60°
Q2ZQ01Ⅰ	2200	76	-60°	-8°	450	30	60°
Q2ZQ01Ⅱ	2200	76	-60°	-8°	450	30	60°
QH400Ⅰ	2350	75	-60°	-8°	240	11	60°
QH400Ⅱ	2350	75	-60°	-8°	240	11	60°
QH400Ⅰ	2350	75	-60°	-8°	280	15	60°
QH400Ⅱ	2350	75	-60°	-8°	280	15	60°
QH400Ⅰ	2350	75	-60°	-8°	340	18.5	60°
QH400Ⅱ	2350	75	-60°	-8°	340	18.5	60°
QH400Ⅰ	2350	75	-60°	-8°	360	22	60°
QH400Ⅱ	2350	75	-60°	-8°	360	22	60°
