HVG OTHER INDUSTRIAL EQUIPMENT 0015: Double-gun Stud Welder
1. Brief Introduction: Double-gun stud welder means one machine with two guns working together.
2. Advantages:
3. Welding Stud Size:
M4, M6,M8…M46,M50

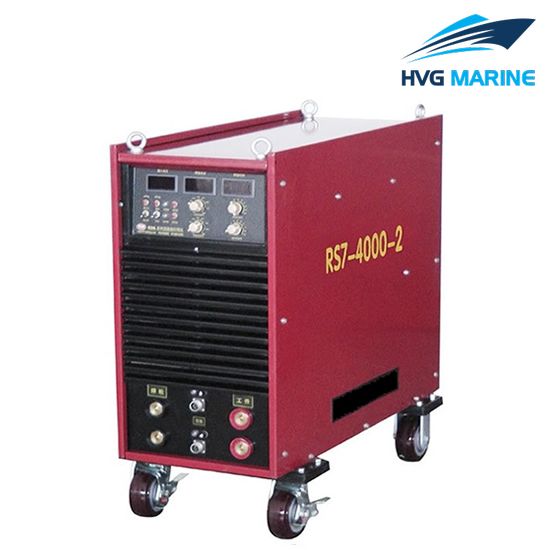

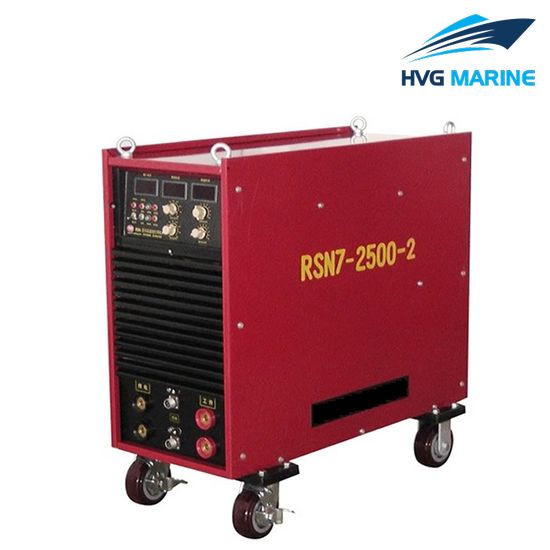

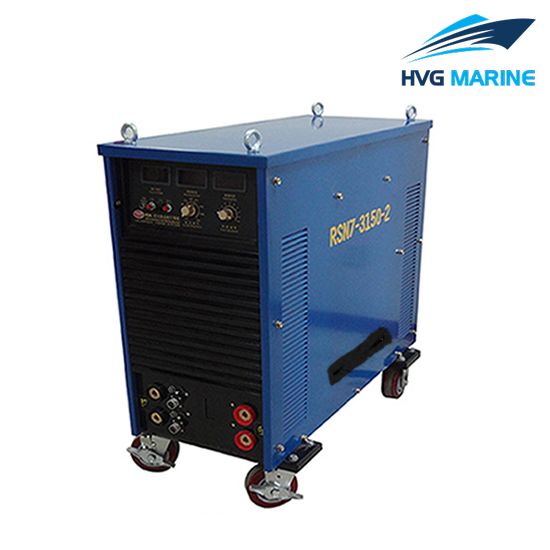

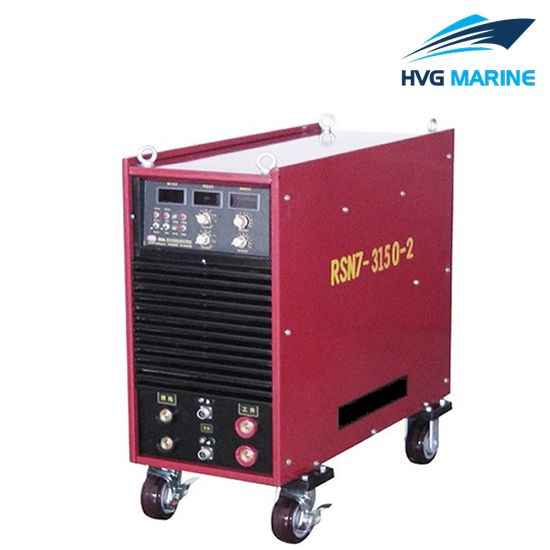

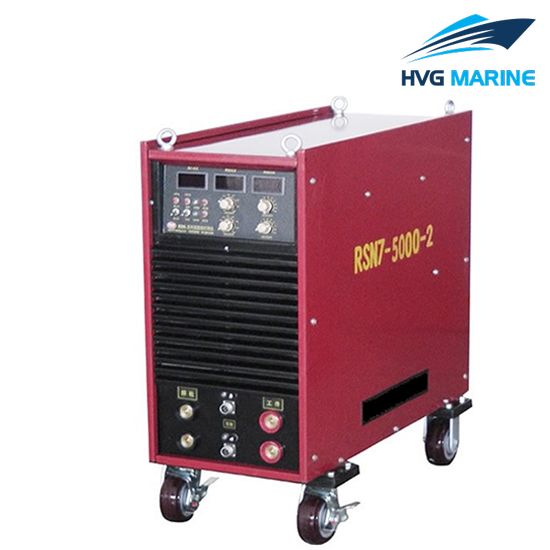

| Item | RSN7-2500-2 | RSN7-3150-2 | RSN7-4000-2 | RSN7-5000-2 | ||||
| operation situation | one gun | dual guns | one gun | dual guns | one gun | dual guns | one gun | dual guns |
| welding range | Φ6-Φ28 | Φ4-Φ18 | Φ6-Φ36 | Φ4-Φ20 | Φ6-Φ46 | Φ4-Φ24 | Φ8–Φ50 | Φ6–Φ28 |
| welding current | 400A-2500A | 300A-1250A | 400A-3150A | 300A-1550A | 600A-4000A | 400A-2000A | 600A-5000A | 400A-2500A |
| welding speed | Φ28
8pcs/minute |
Φ18 8pcs/minute | Φ36
8pcs/minute |
Φ20 8pcs/minute | Φ46 8pcs/minute | Φ24
8pcs/minute |
Φ50
6pcs/minute |
Φ28
6pcs/minute |
| welding time | 0.1S-3S | 0.1S-3S | 0.1S-3S | 0.1S-3S | ||||
| input power | AC 3˜300V-440V | AC 3˜300V-440V | AC 3˜300-440 | AC 3˜300-440 | ||||
| rated input power | 90KW | 120KW | 150KW | 190KW | ||||
| power switch | 160A | 225A | 250A | 250A | ||||
| protect grade | Ip23 | Ip23 | Ip23 | Ip23 | ||||
| cooling way | F | F | F | F | ||||
| dimension(L/W/H) | 960x418x760mm | 990x418x800mm | 990x418x800mm | 990x418x800mm | ||||
| weight | 168KG | 180KG | 188KG | 198KG | ||||
