HVG MARINE VENTILATION EQUIPMENT 0003

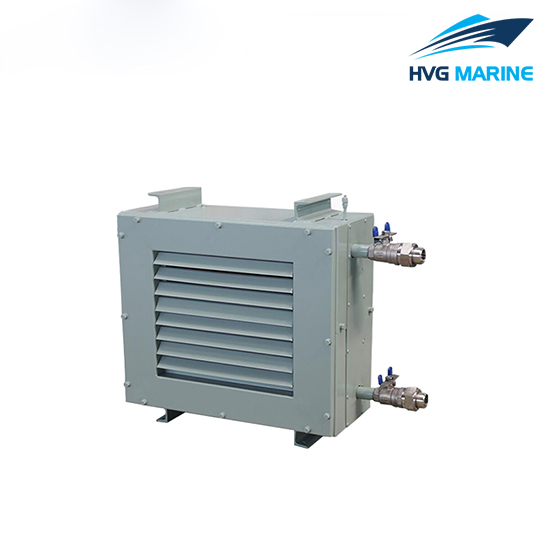

HVG MARINE VENTILATION EQUIPMENT 0003: CNF(R) Marine Hot Water Heating Fan Heater

Description

The marine hot water heating heater is mainly used when the ship is parked and the ambient temperature is close to zero. In order to ensure the cabin temperature required for the corresponding cabin of the ship, in order to facilitate the timely and rapid start of the cabin equipment, the ship heater is a ship important essential equipment .

Structure

The CNF(R) hot water series heater consists of a heat dissipation coil, an impeller, a collecting ring, and a motor. The heat-dissipating coil is made of a copper tube copper sleeve (a mechanical winding method can also be used on the heat-dissipating tube as needed), and the heating medium is generally 60-90°C hot water. The impeller adopts LF3 anti-rust aluminum, and the shell is welded by ordinary steel plate or stainless steel.

Features

1. Small size
2. Light weight
3. Excellent corrosion resistance
4. Low noise
5. Anti-sway
6. Strong impact

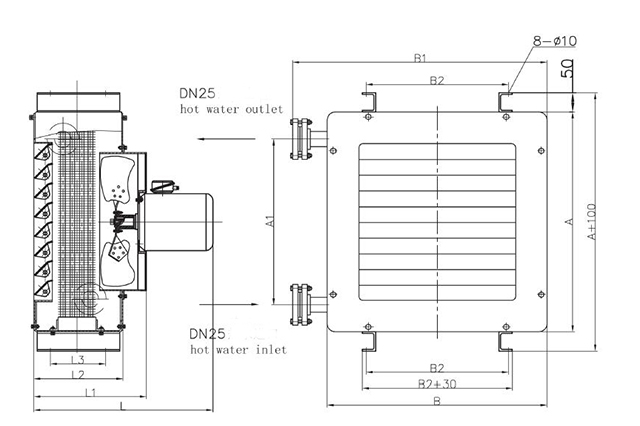

Drawing

Technical specification:

Specification

Model	Heating capacity （KW）	Flow Rate m3/h	Motor		Dimensions								Weight kg
Model	Heating capacity （KW）	Flow Rate m3/h	Power KW	Model	A	A1	B	B1	B2	L	L1	L2	Weight kg
CNF(R)-18	10	1300	0.25	Y711-4-H	450	370	520	620	360	500	330	250	48
CNF(R)-25	25	2000	0.25	Y711-4-H	570	600	600	700	450	500	380	300	62
CNF(R)-35	35	3000	0.35	Y712-4-H	610	650	650	750	450	500	380	300	82
CNF(R)-45	45	5000	0.75	Y802-4-H	680	730	730	830	500	600	380	300	98
