    HVG MARINE VALVE 0215

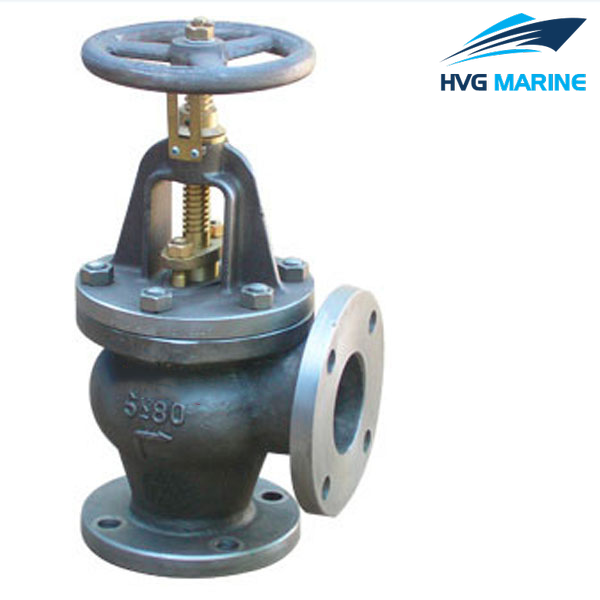

    HVG MARINE VALVE 0215: Marine Cast Steel Screw Down Check Angle Valve JIS F7312C 5K

    1.Design standard:JISF7400.

    2.End standard:JISB2220.

    3.End type:Flange.

    4.PN:5k.

    5.DN:50mm-300mm.

    6.Main material:

    • Body/Bonnet:ZG230-450;
    • Seat:SS410/BC6;
    • Stem:SS410/H62;
    • Disc:SS410/BC6.

    7.Application:Oil piping,water piping and steam piping.

    8.Function:Such valves are used for on-off duty and preventing refluence.

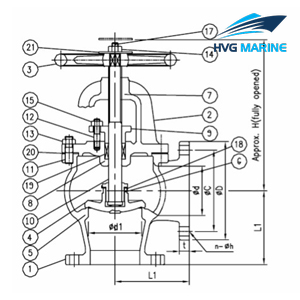

    Drawing of Marine Cast Steel Screw Down Check Angle Valve JIS F7312C 5K :

    Technical specification:

    • Specification of Marine Cast Steel Screw Down Check Angle Valve JIS F7312C 5K :
    Size L1 Flange diam. (D) Pitch (C) Hole (nxd) t H Weight
    (mm) (mm) (mm) (mm) (mm) (mm) (mm) (kgs)
    50 100 130 105 4-D15 16 240 12.9
    65 115 155 130 4-D15 18 255 18.2
    80 130 180 145 4-D19 18 265 23.3
    100 150 200 165 8-D19 20 310 33.5
    125 170 235 200 8-D19 20 330 46.5
    150 190 265 230 8-D19 22 380 64.0
    200 220 320 280 8-D23 24 450 104.0
    250 275 385 345 12-D23 26 540 175.0
    300 310 430 390 12-D23 28 610 243.0
