HVG MARINE VALVE 0206

HVG MARINE VALVE 0206: Niikura Cast Iron 53-ON Air Vent(Pipe) Head 5k

1.Design standard:53-on.

2.End standard:JISB2220.

3.End type:Flange.

4.PN:5k.

5.DN:40mm-450mm.

6.Main material:

(1). Body: FC200(Cast Iron) ;
(2). Float Disc: SS304 ;
(3). Rubber Ring: NBR ;
(4). Screen: SS304 ;
(5). Cover: Carbon Steel with Galve or Stainless Steel SS304.

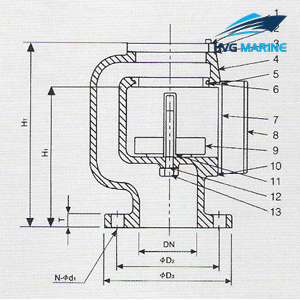

Drawing of Niikura Cast Iron 53-ON Air Vent(Pipe) Head 5k:

Technical specification:

Specification of Niikura Cast Iron 53-ON Air Vent(Pipe) Head 5k:

Dimension (mm)							Weight (kgs)
DN	D2	D3	HT	H1	T	N-d1	Weight (kgs)
50	105	130	175	127	14	4xΦ15	7.4
65	130	155	204	164	14	4xΦ15	12.6
80	145	180	244	176	14	4xΦ15	16
100	165	200	220	160	16	8×19	23
125	200	235	250	180	16	8xΦ19	34
150	230	265	285	208	18	8xΦ19	47
200	280	320	365	269	20	8xΦ23	72
250	345	385	430	314	22	12xΦ23	120
300	390	430	530	367	22	12xΦ23	178
350	435	480	570	415	24	12xΦ23	196
400	495	540	640	475	24	12xΦ23	235
450	555	605	713	522	24	12xΦ23	298
