HVG MARINE VALVE 0190: Marine Wafer Type Butterfly Valve DIN 3202 PN16
1. Material:
- Body: Ductile Iron or Cast Steel (FCD/SC49)
- Seat: Rubber (NBR)
- Disc: Stainless Steel or Bronze (SUS304/ BC6)
- Stem: Stainless Steel (SUS403)
2. Pressure:
- Pressure(Body): 3.24 Mpa
- Pressure (Seat): 2.38 Mpa
3. Operate: Handle or Worm

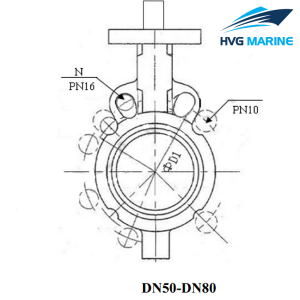

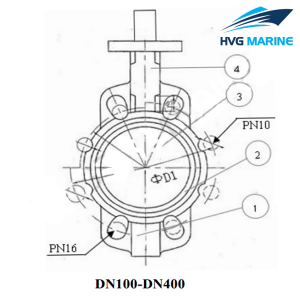

4. Data for Marine Wafer Type Butterfly Valve DIN 3202 PN16
Manufactured in accordance to DIN 3202
| Nominal Diameter (mm) | D | D1 | L | N | Weight (KG) |
| 50 | 94 | 125 | 43 | 4×21 | 7.8 |
| 65 | 117 | 145 | 46 | 4×21 | 11 |
| 80 | 127 | 160 | 46 | 8×21 | 15 |
| 100 | 152 | 180 | 52 | 8×21 | 18 |
| 125 | 183 | 210 | 56 | 8×25 | 24 |
| 150 | 213 | 240 | 56 | 8×25 | 35 |
