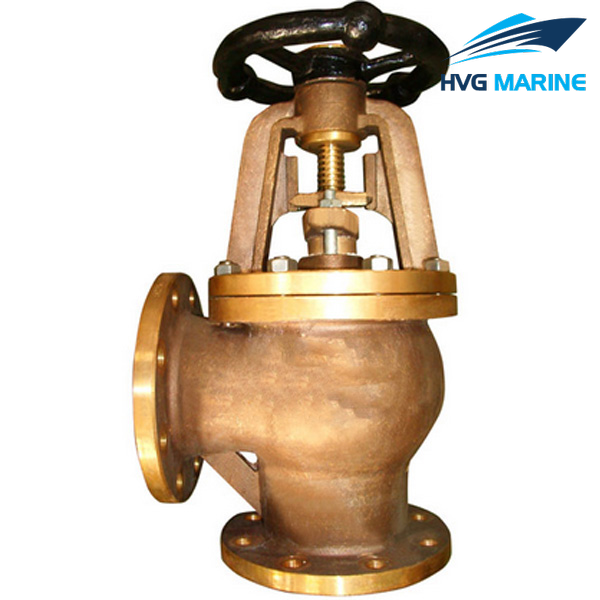

HVG MARINE VALVE 0128: Marine Bronze Suction Sea Valve GB/T2030-1980
1.Design standard:GB600-65.
2.End standard:GB569-65.
3.End type:Flange.
4.PN:1.6Mpa.
5.DN:80mm-400mm.
6.Main material:
7.Application:Sea water and fresh water piping.

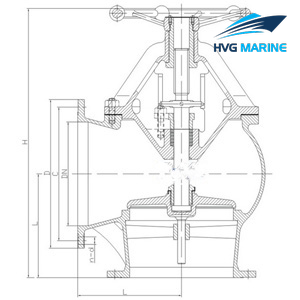

Drawing of Marine Bronze Suction Sea Valve GB2030-1980:
|
DN/mm |
Structure dimension |
Flange dimension |
Bolt |
Lift range /m |
Weight kg |
||||||
|
L /mm |
H /mm |
D/mm |
D1/mm |
D2/mm |
b/mm |
D0 /mm |
n |
Th. |
|||
|
80 |
125 |
360 |
170 |
138 |
118 |
14 |
15 |
8 |
M14 |
24 |
19.0 |
|
100 |
135 |
415 |
190 |
158 |
138 |
14 |
15 |
8 |
M14 |
30 |
23.6 |
|
125 |
160 |
470 |
215 |
183 |
164 |
14 |
15 |
10 |
M14 |
40 |
31.2 |
|
150 |
175 |
506 |
240 |
208 |
190 |
14 |
15 |
12 |
M14 |
48 |
49.8 |
|
200 |
220 |
595 |
295 |
264 |
247 |
15 |
15 |
12 |
M14 |
60 |
70.0 |
|
250 |
260 |
698 |
365 |
327 |
306 |
16 |
17 |
14 |
M16 |
70 |
111.0 |
|
300 |
300 |
780 |
430 |
386 |
360 |
19 |
22 |
14 |
M20 |
78 |
170.3 |
|
350 |
320 |
910 |
480 |
436 |
410 |
20 |
22 |
16 |
M20 |
100 |
229.0 |
|
400 |
380 |
960 |
530 |
486 |
460 |
21 |
22 |
16 |
M20 |
110 |
299.0 |
