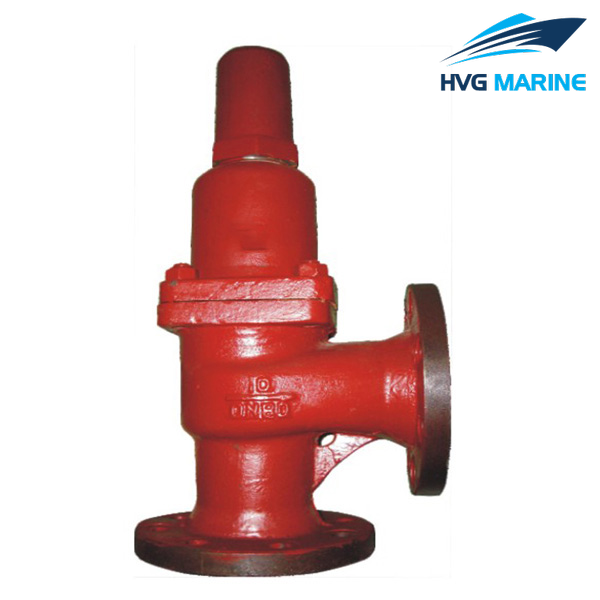

HVG MARINE VALVE 0102: Marine Flanged Angle Safety Valve CB304-1992

1.Design standard:CB304-1992.

2.End standard:GB/T2501&GB/T569.

3.End type:Flange.

4.DN:25mm-80mm.

5.Main matrial:

6.Application:Sea water piping,fresh water piping and steam piping.

7.Function:Such valves are used for pressure control.

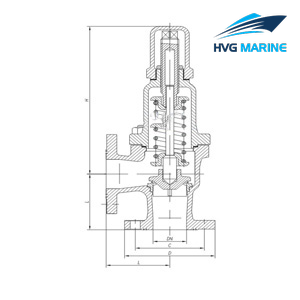

Drawing of Marine Flanged Angle Safety Valve CB304-1992:

DN/mm	Working pressure Mpa	Flange connection dimension				Height	Structure length
		D/mm	C/mm	n	d/mm	H/mm	L/mm
25	0.1～0.3	115	85	4	14	174	100
	＞0.3～0.6
	＞0.6～0.9
32	0.1～0.3	140	100	4	18	200	105
	＞0.3～0.6
	＞0.6～0.9
40	0.1～0.3	150	110	4	18	210	115
	＞0.3～0.6
	＞0.6～0.9
50	0.1～0.3	165	125	4	18	252	125
	＞0.3～0.6
	＞0.6～0.9
65	0.1～0.3	185	145	4	18	316	145
	＞0.3～0.6
	＞0.6～0.9
80	0.1～0.3	200	160	8	18	346	155
	＞0.3～0.6
	＞0.6～0.9
