MARINE VALVE 0038
    • MARINE VALVE 0038
    HVG MARINE VALVE 0038

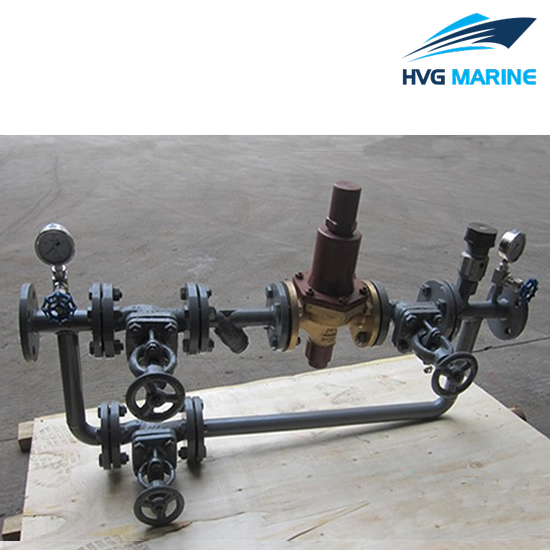

    HVG MARINE VALVE 0038: Marine Air Reducing Valve Group

    • 1. Medium: Air
    • 2. Feature: It can keep outlet pressure stabilizing in needed.
    • 3. Inlet Pressure: 0.4~3.0 Mpa
    • 4. Outlet Pressure: 0.2~1.2 Mpa
    • 5. Nominal Diameter: 15-50 mm
    • 6. Standard: GB, JIS, DIN, ANSI can be offered.
    • 7. Type: Single Connection, Single Type with Side Pipe and Double Type Connection

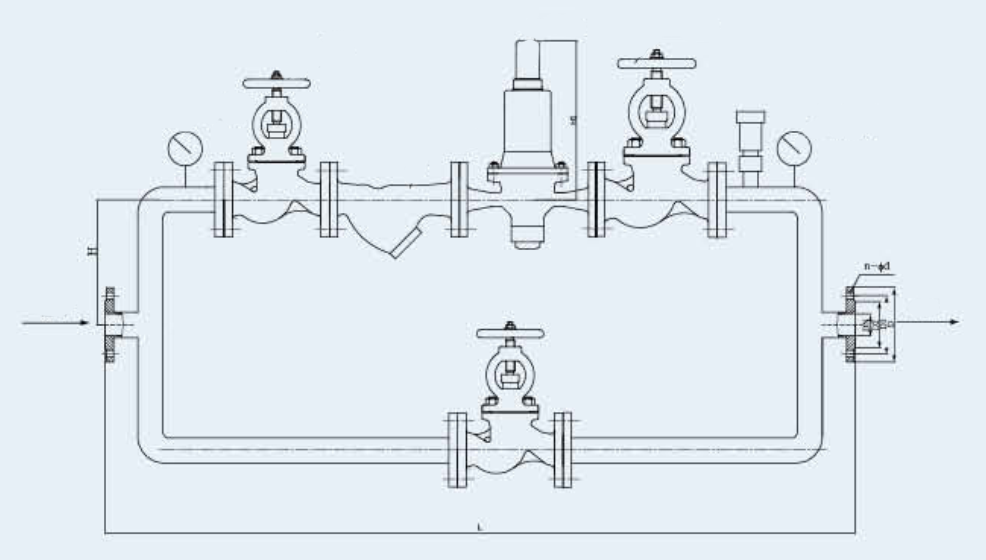

    Drawing:

    Technical specification:

    • Specification
    Nominal Diameter Structure Dimension Flange Dimension
    L H H1 D C g b n d
    15 750 250 125 95 65 47 14 4 14
    20 800 250 135 105 75 58 16 4 14
    25 845 250 145 115 85 68 16 4 14
    32 920 260 155 140 100 78 16 4 18
    40 1000 265 155 150 110 88 16 4 18
    50 1085 290 170 165 125 102 18 4 18
