    HVG MARINE VALVE 0032

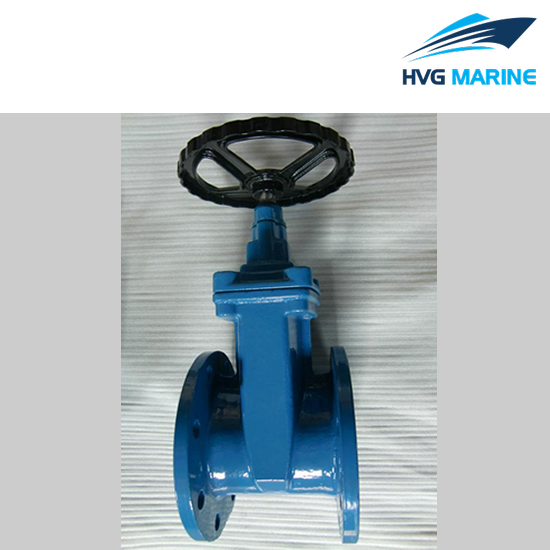

    HVG MARINE VALVE 0032: Marine DIN Cast Iron Gate Valve

    • 1. Standard: DIN3204 F4/F5
    • 2. Valve Body: Cast Iron HT250
    • 3. Valve Disc: Bronze ZCuSn5Pb5Zn5 OR Stainless Steel 2Cr13
    • 4. Valve Stem: Brass HPb59-1 OR Stainless Steel 2Cr13
    • 5. Gasket: NON-Asbestos
    • 6. Marine DIN Cast Iron Gate Valve Specification

    Technical specification:

    • Marine DIN Cast Iron Gate Valve Specification:

    Unit: mm

    Nominal Diameter L (F4) D C NO. h t H D2 m
    PN16 DN50 150 165 125 4 18 20 340 180 60
    PN16 DN65 170 185 145 4 18 20 372 180 75
    PN16 DN80 180 200 160 8 18 22 430 200 92
    PN16 DN100 190 220 180 8 18 24 460 200 112
    PN16 DN125 200 250 210 8 18 26 528 224 138
    PN16 DN150 210 285 240 8 22 26 566 224 165
    PN16 DN200 230 340 295 8 22 26 685 250 215
