MARINE VALVE 0024
    • MARINE VALVE 0024
    HVG MARINE VALVE 0024

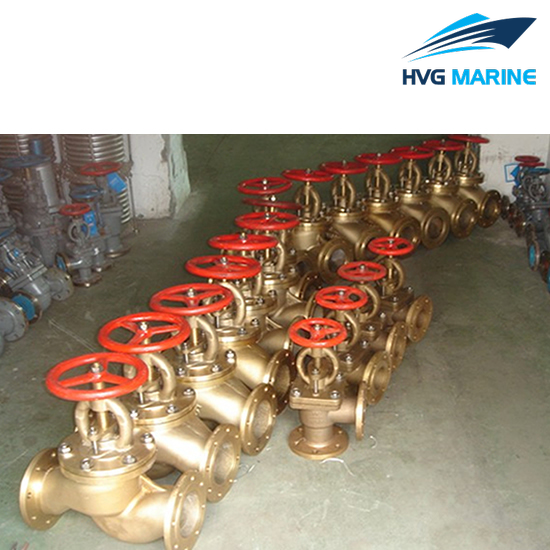

    HVG MARINE VALVE 0024: DIN Bronze Globe Valve

    • 1. Type: Straight Type, Angle Type.
    • 2. Nominal Diameter: DN15-DN100
    • 3. Valve Body Material: Bronze
    • 4. Valve Disc Material: Bronze
    • 5. Gland Packing: Asbestos-free
    • 6. Bonnet Gasket: PTFE
    • 7. Hand Wheel: Cast Iron

    Technical specification:

    • Specification:
    DIN Bronze Globe Valve – Straight Type DIN Bronze Globe Valve – Angle Type
    IMPA Code Nominal Diameter Face to Face L IMPA Code Nominal Diameter Face to Face L
    755121 15 70 755131 15 65
    755122 20 80 755132 20 70
    755123 25 90 755133 25 75
    755124 32 105 755134 32 90
    755125 40 120 755135 40 100
    755126 50 140 755136 50 105
    755127 65 180 755137 65 115
    755128 80 200 755138 80 125
    755129 100 230
