HVG MARINE VALVE 0014

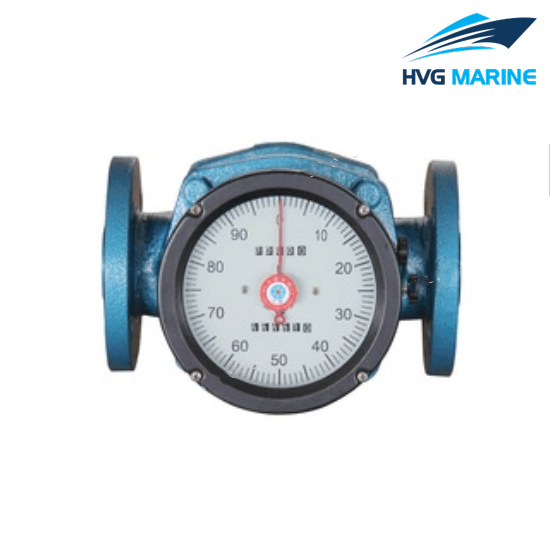

HVG MARINE VALVE 0014: Waist Wheel Flow Meter

1. Application: It is used for continuous or intermittent of pipeline flow measurement of high precision measuring instruments.
2. Field: Marine
3. Parts: Measuring cavity, seal coupling and counter.
4. Features: High precision, light weight, long lifetime, good reliability, easy to install and easy to maintain.

Technical specification:

Specification:

Nominal Diameter (mm)	Connections End Standard	Accuracy Class
15	GB/T9113.1-2000	0.2/ 0.5
20	GB/T9113.1-2000	0.2/ 0.5
25	GB/T9113.1-2000	0.2/ 0.5
40	GB/T9113.1-2000	0.2/ 0.5
50	GB/T9113.1-2000	0.2/ 0.5
80	GB/T9113.1-2000	0.2/ 0.5
100	GB/T9113.1-2000	0.2/ 0.5
150	GB/T9113.1-2000	0.2/ 0.5
