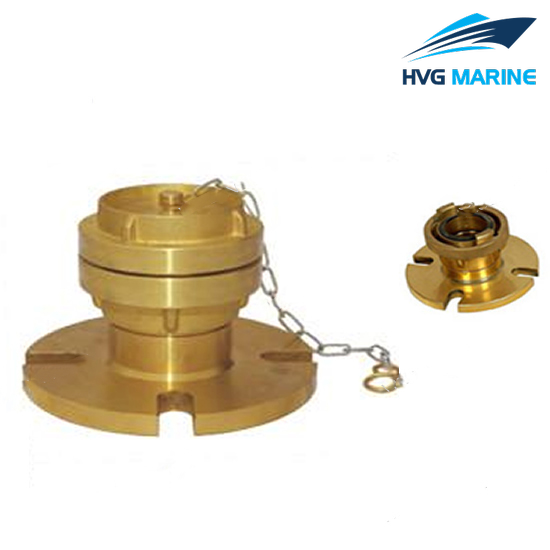

HVG MARINE VALVE 0009: International Shore Connection with CCS SOLAS

1. Application: Marine
2. IMPA Code: 330841
3. Standard: CBM 1114-1982
4. Bolts and Nuts: M16 x 50 mm x 4
5. Outside Diameter: 178 mm
6. Inner Diameter: 64 mm
7. Flange Hole Number x Hole Size: 4 x 19 mm
8. Flange Thickness: 14.5 mm
9. Material: Brass
10. Nominal Diameter: DN50/65
11. Nominal Pressure: 1.0 Mpa
