HVG MARINE STEEL 0140

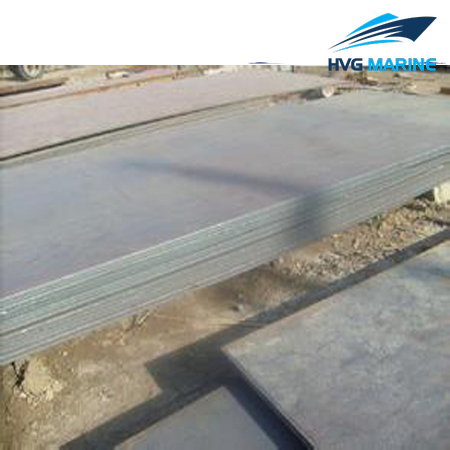

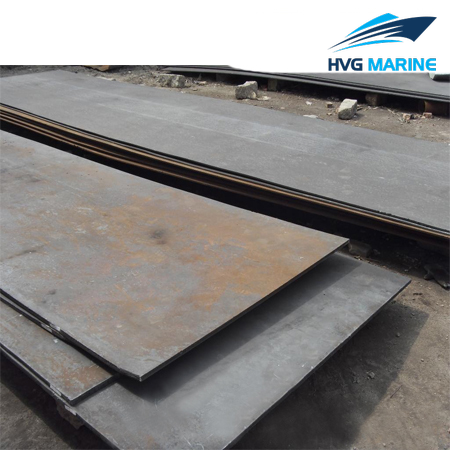

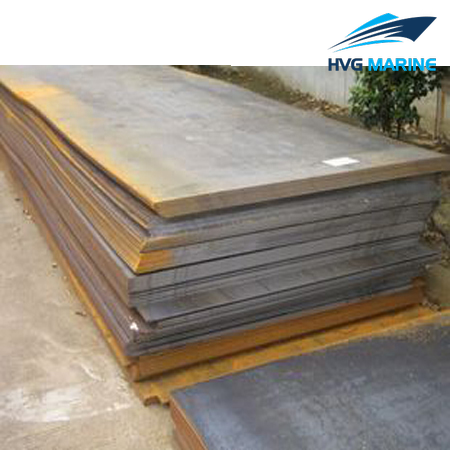

HVG MARINE STEEL 0140: AB EQ63 Shipbuilding Steel Plate

The shipbuilding steel plate is ABS grade EQ63. Its steel grade is equivalent with CCSEH620, BVEH620, NV E620, GL-E620, KREH63, LREH63, KE63, and RINA-E620. The AB/EQ63 is a super high strength steel grade. It is used for offshore drilling platforms, shipping engineering and shipbuilding projects. We are able to provide normal strength, high strength, and super high strength shipbuilding steel plates. We can customize the sizes of steel plates for you. The steel futures and spot are both available. Besides, we are able to provide relevant certificates, such as CCS, ABS, LR, BV, GL,KR,NK,RINA, DNV… If you want to know more details about our products, welcome to contact us.

Technical specification:

Specifications of AB EQ63 Shipbuilding Steel Plate

Project	Data
Steel Grade	AB/EQ63
Chemical Composition	C %	≦0.20
	Si %	≦0.55
	Mn %	≦1.70
	P %	≦0.025
	S %	≦0.025
	N %	≦0.020
Mechanical Property	Upper Yield strength (ReH/MPa)	≧620
	Tensile Strength (Rm/MPa)	720~890
	Elongation after Fracture (A/%)	≧15
	Test Temperature (℃)	-40
Heat Treatment	TM/QT/TM+T
Plate Size	Thickness (mm)	6~350
	Width (mm)	900~4850
	Length (mm)	3000~25000
Notes	It is available to customize the size of steel plate.
