HVG MARINE STEEL 0132

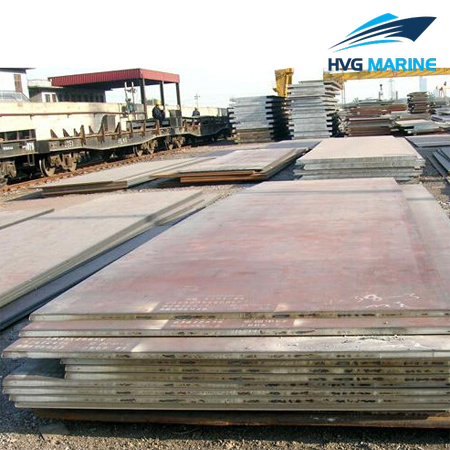

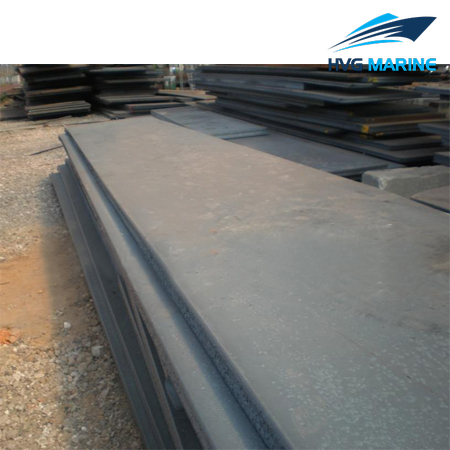

HVG MARINE STEEL 0132: AB EQ51 Shipbuilding Steel Plate

The shipbuilding steel plate is ABS grade EQ51. Its steel grade is equivalent with CCSEH500, BVEH500, NV E500, GL-E500, KREH51, LREH50, KE51, and RINA-E500. AB/EQ51 shipbuilding steel plate is suitable for offshore drilling platforms, shipping engineering and shipbuilding projects. The AB/EQ51 is an ultra high strength steel grade. It has excellent mechanical properties. We can provide normal strength shipbuilding steel plates, high strength shipbuilding steel plates, and ultra high strength shipbuilding steel plates. structural steel plates for offshore platform is available, too. We are capable of customizing the sizes of steel plates for you. Besides, we are able to provide relevant certificates, such as CCS, ABS, LR, BV, GL,KR,NK,RINA, DNV… If you are interested in our products, welcome to contact us.

Why choose us?

High quality products, certified by the classification societies
An ample supply
Professional service
Fast delivery
Reasonable price

Technical specification:

Specifications of AB/EQ51 Shipbuilding Steel Plate

Project	Data
Steel Grade	AB/EQ51
Chemical Composition	C %	≦0.20
	Si %	≦0.55
	Mn %	≦1.70
	P %	≦0.025
	S %	≦0.025
	N %	≦0.020
Mechanical Property	Upper Yield strength (ReH/MPa)	≧500
	Tensile Strength (Rm/MPa)	610~770
	Elongation after Fracture (A/%)	≧17
Charpy V-Notch Impact Test	Longitudinal (KV2/J)	≧50
	Transverse (KV2/J)	≧33
	Test Temperature (℃)	-40
Heat Treatment	TM/QT/TM+T
Plate Size	Thickness (mm)	6~350
	Width (mm)	900~4850
	Length (mm)	3000~25000
Note	It is available to customize the size of steel plate.

Other Shipbuilding Steel Plates Provided:

BV grade A, BV grade B, BV grade D, BV grade E, BV AH32, BV DH32, BV EH32, BV FH32, BV AH36, BV DH36, BV EH36, BV FH36, BV AH40, BV DH40, BV EH40, BV FH40, BV AH420, BV DH420, BV EH420, BV FH420, BV AH460, BV DH460, BV EH460, BV FH460, BV AH500, BV DH500, BV EH500, BV FH500, BV AH550, BV DH550, BV EH550, BV FH550, BV AH620, BV DH620, BV EH620, BV FH620, BV AH690, BV DH690, BV EH690, BV FH690…
