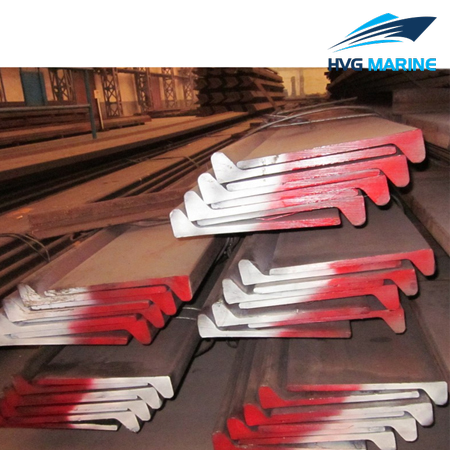

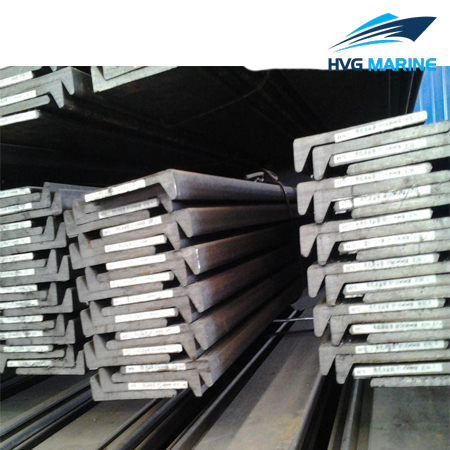

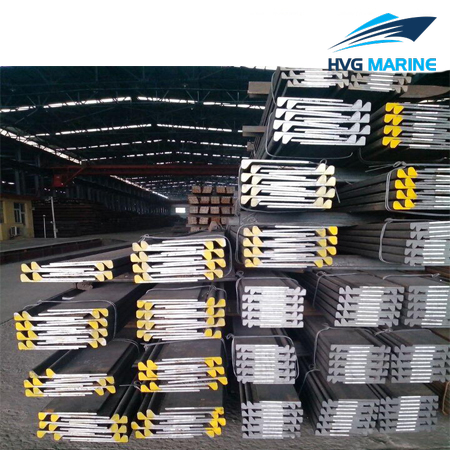

HVG MARINE STEEL 0067: Hot Rolled Bulb Flats

Bulb flats is a kind of steel sections with an optimum weight ratio. They are used in shipbuilding as plate stiffeners in different fields of application. Their shape guarantees many advantages compared with other reinforcement solutions: first, bulb flats are the most economical reinforcement for plates; second, they have obvious advantages in strength to weight ratio than other possible reinforcement; their shape reduce welding to minimum during installation… The hot rolled bulb flats are made of marine steel certified by leading classification societies, such as CCS, ABS, BV, LR, GL… They are produced by top steel mills which have mature technology, strict quality management and rich production experience. The bulb flats meet requirements of GB/T 9945-2012 or EN 10067. If you are interested in our hot rolled bulb flats, welcome to contact us. Customization is available.

Technical specification:

The following table shows steel grades that we provide regularly for bulb flats:

Adopted Standard	Steel Grades
ABS Grade	AB/A, AB/AN, AB/B, AB/BN, AB/D, AB/DN, AB/E, AB/EN, AB/AH32, AB/AH32N, AB/DH32, AB/DH32N, AB/EH32, AB/EH32N, AB/AH36, AB/AH36N, AB/DH36, AB/DH36N, AB/EH36, AB/EH36N, AB/AH40, AB/AH40N, AB/DH40, AB/DH40N, AB/EH40, AB/EH40N
BV Grade	BVA, BVB, BVD, BVE, BVAH32, BVDH32, BVEH32, BVAH36, BVDH36, BVEH36, BVAH40, BVDH40, BVEH40
CCS Grade	CCSA, CCSB, CCSD, CCSE, CCSAH32, CCSDH32, CCSEH32, CCSAH36, CCSDH36, CCSEH36, CCSAH40, CCSDH40, CCSEH40
DNV Grade	NV A, NV B, NV D, NV E, NV A32, NV D32, NV E32, NV A36, NV D36, NV E36, NV A40, NV D40, NV E40
GL Grade	GL-A, GL-ATM, GL-B, GL-BTM, GL-D, GL-DTM, GL-E, GL-ETM, GL-A32, GL-A32TM, GL-D32, GL-D32TM, GL-E32, GL-E32TM, GL-A36, GL-A36TM, GL-D36, GL-D36TM, GL-E36, GL-E36TM, GL-A40, GL-A40TM, GL-D40, GL-D40TM, GL-E40, GL-E40TM
KR Grade	KRA, KRB, KRD, KRE, KRAH32, KRDH32, KREH32, KRAH36, KRDH36, KREH36, KRAH40, KRDH40, KREH40
LR Grade	LRA, LRB, LRD, LRE, LRAH32, LRDH32, LREH32, LRAH36, LRDH36, LREH36, LRAH40, LRDH40, LREH40
NK Grade	KA, KB, KD, KE, KA32, KD32, KE32, KA36, KD36, KE36,, KA40, KD40, KE40
RINA Grade	RINA-A, RINA-B, RINA-D, RINA-E, RINA-AH32, RINA-DH32, RINA-EH32, RINA-AH36, RINA-DH36, RINA-EH36, RINA-AH40, RINA-DH40, RINA-EH40
