HVG MARINE STEEL 0047: Rolled Steel Angle-Unequal

Rolled steel angle-unequal is often called an “angle”, “unequal angle” or “L-shape”. It is described by giving both leg length (longer first) and the wall thickness, eg. 30×20×3. With longer leg being in a vertical position, its loading capability is greater than equal angles, therefore it is often used as a lintel. The rolled steel angle-unequal is able to be made of S235JR, S235J0, S235J2, S275, S355JR, S355J0, S355J2… Excepting the dimensions we provided, we can customize the angle’s dimensions for you. In addition to rolled steel angle-unequal, we also provide rolled steel angle-equal, stainless steel angles, galvanized steel angles, shipbuilding steel angles, shipbuilding bulb flats, H beams, I beams, steel channels, flat bars, T sections, marine steel plates… If you want to know more details, welcome to contact us!

Features of Rolled Steel Angle-Equal

Hot rolled, unequal legs
Excellent mechanical properties, well riveting, good weldability
To comply with EN 10056
A full selection of materials and dimensions
Available customization
Produced by excellent steel mills

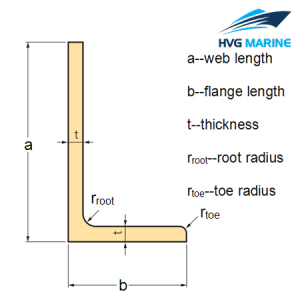

Profile of Rolled Steel Angle-Unequal

Technical specification:

Dimensions of Rolled Steel Angle-Unequal

Designation	Mass kg/m	Sectional Area cm2	Dimensions
Designation	Mass kg/m	Sectional Area cm2	a mm	b mm	t mm	rroot mm
30×20×3	1.12	1.43	30	20	3	4
30×20×4	1.46	1.86	30	20	4	4
40×20×4	1.77	2.26	40	20	4	4
40×25×4	1.93	2.46	40	25	4	4
45×30×4	2.25	2.87	45	30	4	4.5
50×30×5	2.96	3.78	50	30	5	5
60×30×5	3.36	4.28	60	30	5	5
60×40×5	3.76	4.79	60	40	5	6
60×40×6	4.46	5.68	60	40	6	6
65×50×5	4.35	5.54	65	50	5	6
70×50×6	5.41	6.89	70	50	6	7
75×50×6	5.65	7.19	75	50	6	7
75×50×8	7.39	9.41	75	50	8	7
80×40×6	5.41	6.89	80	40	6	7
80×40×8	7.07	9.01	80	40	8	7
100×50×6	6.84	8.71	100	50	6	8
100×50×8	8.97	11.4	100	50	8	8
100×65×7	8.77	11.2	100	65	7	10
100×65×8	9.94	12.7	100	65	8	10
100×65×10	12.3	15.6	100	65	10	10
100×75×8	10.6	13.5	100	75	8	10
100×75×10	13.0	16.6	100	75	10	10
100×75×12	15.4	19.7	100	75	12	10
120×80×8	12.2	15.5	120	80	8	11
120×80×10	15.0	19.1	120	80	10	11
120×80×12	17.8	22.7	120	80	12	11
125×75×8	12.2	15.5	125	75	8	11
125×75×10	15.0	19.1	125	75	10	11
125×75×12	17.8	22.7	125	75	12	11
135×65×8	12.2	15.5	135	65	8	11
135×65×10	15.0	19.1	135	65	10	11
150×75×9	15.4	19.6	150	75	9	12
150×75×10	17.0	21.7	150	75	10	12
150×75×12	20.2	25.7	150	75	12	12
150×75×15	24.8	31.7	150	75	15	12
150×90×10	18.2	23.2	150	90	10	12
150×90×12	21.6	27.5	150	90	12	12
150×90×15	26.6	33.9	150	90	15	12
150×100×10	19.0	24.2	150	100	10	12
150×100×12	22.5	28.7	150	100	12	12
200×100×10	23.0	29.2	200	100	10	15
200×100×12	27.3	34.8	200	100	12	15
200×100×15	33.75	43.0	200	100	15	15
200×150×12	32.0	40.8	200	150	12	15
200×150×15	39.6	50.5	200	150	15	15
Note	The length of the unequal leg angles can be customized.
