HVG MARINE STEEL 0005: Marine Carbon and Carbon-Manganese Steel Pipes and Tubes

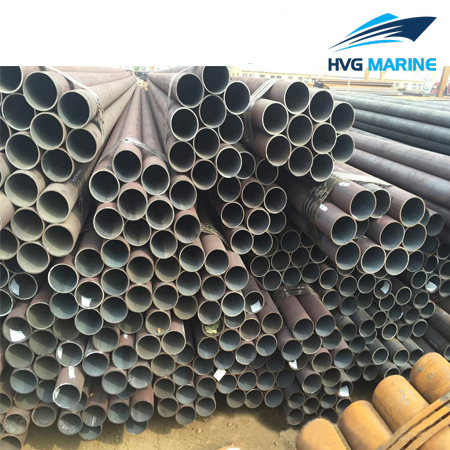

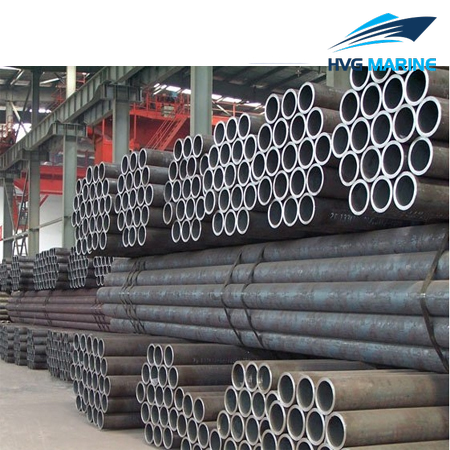

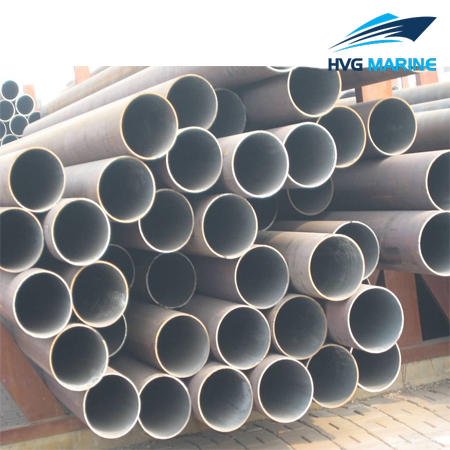

The marine carbon and carbon-manganese steel pipes and tubes are sort of shipbuilding steel pipes made of carbon and carbon-manganese steel. The pipes are applied to marine boilers and marine pressure systems. The manufacturing methods for the pipes are: WHR(WHEX), WHE, WCD(WCR). The process is seamless. We provide a full selection of pipe specifications, available for heavy wall, thin wall, large diameter, small diameter. The pipe ends is plain. If you have any specific requirements, full customization is available.

In addition to the marine carbon and carbon-manganese steel pipes and tubes, we also provide:

Marine Stainless Steel Tubes
Marine Seamless Steel Pipes
Marine API Line Pipes
Marine Seawater Corrosion Resistant Steel Pipes
Marine Hydraulic Steel Pipes
Marine Pressure Steel Pipes
Marine Boiler Steel Pipes…

Please contact us for a complete product catalog.

Technical specification:

Steel Grades and Chemical Composition
Mechanical Properties
Allowable Deviation for Outer Diameter and Wall Thickness

Steel Grade	Chemical Composition %
	C	Si	Mn	S	P	Residual Elements
						Cr	Mo	Ni	Cu	gross
320	≤0.16	–	0.40~0.70	≤0.020	≤0.025	≤0.25	≤0.10	≤0.30	≤0.30	≤0.70
360	≤0.17	≤0.35	0.40~0.80
410	≤0.21	≤0.35	0.40~1.20
460	≤0.22	≤0.35	0.80~1.20
490	≤0.23	≤0.35	0.80~1.50

Steel Grade	Tensile Strength Rm MPa	Lower Yield Strength ReL MPa	Elongation after Fracture A %
320	320~440	≥195	≥25
360	360~480	≥215	≥24
410	410~530	≥235	≥22
460	460~580	≥265	≥21
490	490~610	≥285	≥21

Manufacturing Methods	Pipe Sizes		Allowable Deviation
WHR(WHEX)	Outer Diameter (D)	all sizes	±1%D or ±0.50 (to select larger value)
	Wall Thickness (S)	≤20	+15%S, -10%S or +0.45, -0.30 (to select larger value)
	Wall Thickness (S)	>20	+10%S
WHE	Outer Diameter (D)	all sizes	±1%D
WHE	Wall Thickness (S)	all sizes	±15%S
WCD (WCR)	Outer Diameter (D)	≤30	±0.20
		30<d≤50< span=””></d≤50<>	±0.30
		>50	±0.8%D
	Wall Thickness (S)	1.5≤S≤3	+12.5%S, -10%S
	Wall Thickness (S)	>3	±10%S
