HVG MARINE PUMP 0047

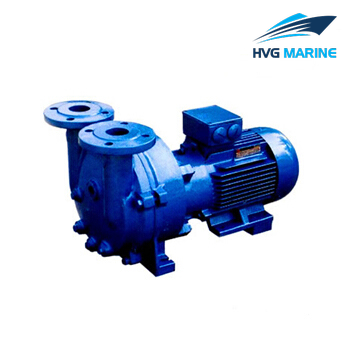

HVG MARINE PUMP 0047: WX Marine Centrifugal Vortex Pump

Applications:

WX type pump is single stage double suction cantilever type centrifugal vortex pump, used for transporting temperature less than 105 degrees, viscosity is not more than 5 degrees, E liquid without solid particles.

Model Explanation

for example 62WX-130
62 – outlet diameter 62mm
WX – centrifugal vortex pump
130 – Said pump Head value in the design point is 30m

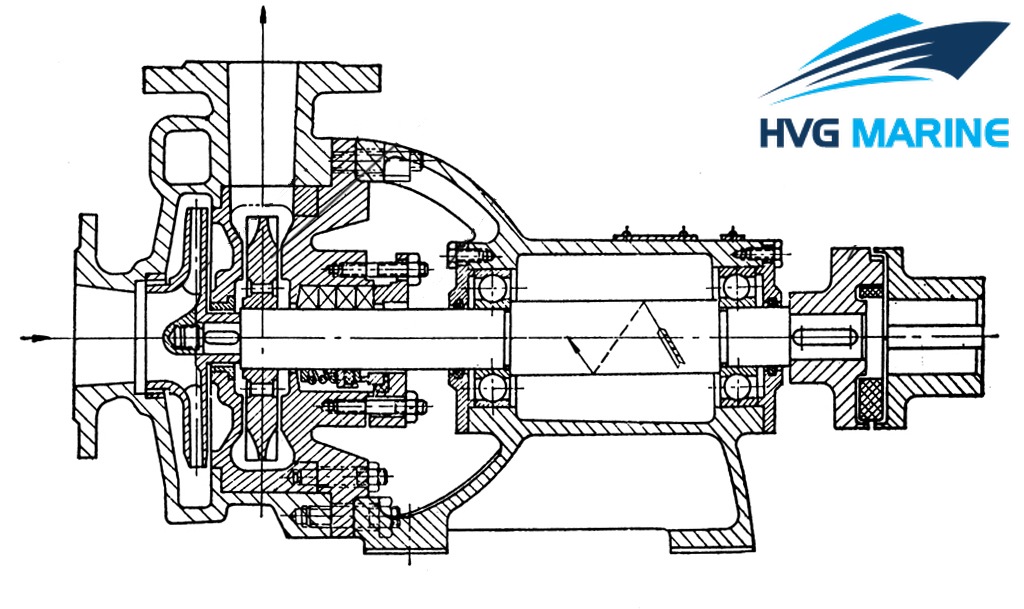

Structure

Technical specification:

Main Technical Parameter

Series Name	WX
Product Name	Centrifugal vortex pump
Model	Marine pump HS-65WX-130	Marine pump HS-65WX-140	Marine pump HS-365WX-150
Capacity (m3/h)	6.3/9/11.25	10.8/14.4/18	17.25/21.6/27
Head (m)	173/130/88	186/140/94	200/150/95
Speed (r/min)	2900/3450	2900/3450	2900/3450
Motor power	15	22	30
Overall weight	70/217	70/359	70/390
Application	Applicable to transport liquid, the temperature is not higher than 150℃ and thickness is not more than 5°E , no causticity, and no solid granule
Medium tempreture	Max.150℃
Certification	CCS, BV etc.
