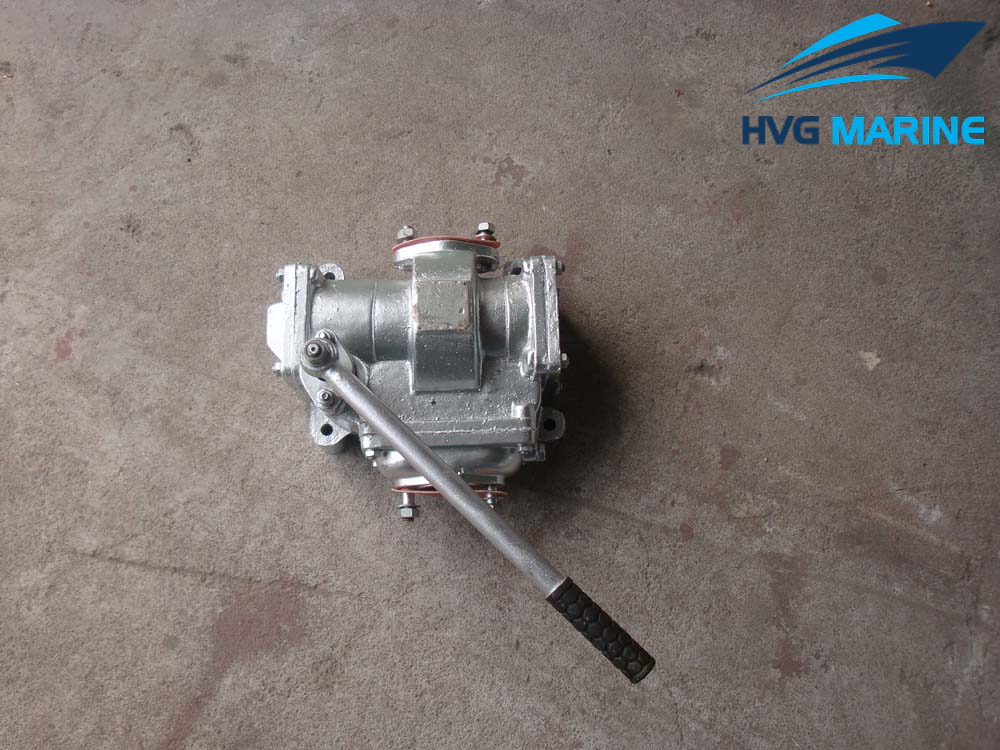

HVG MARINE PUMP 0043

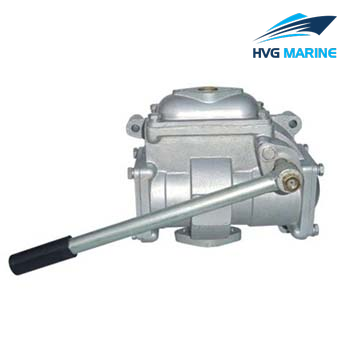

HVG MARINE PUMP 0043: CS Marine Hand Pump

Applications:

CS Series hand piston pump is suitable for various ships pumping not containing hard particles or fibers of the lubricating oil, fuel oil, lubricating oil, other freshwater and seawater, and can be used in civil engineering, fire, water, drainage, oil and water wells kitchen vehicle transport sector and other different places. Transmission medium temperature not exceeding 60℃.

Model Explanation

for example CS-20Y/H
C — Marine
S — Hand pump
20 — Inlet and outlet diameter 20mm
Y/H Iron cylinder or copper alloyCS-20Y(S-20) — Applicable to pumping oil or water
CS-20H(SH-20)—Applicable to fresh water and sea water

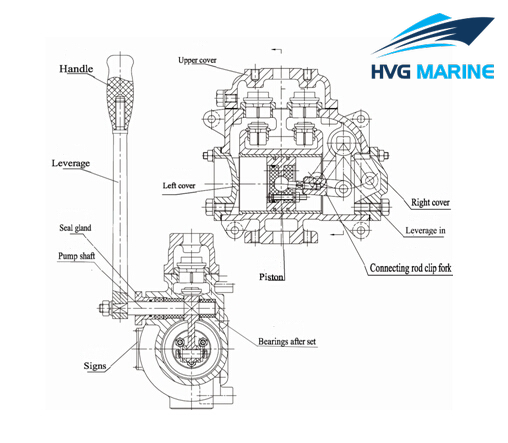

Structure

Technical specification:

Main Technical Parameter

Series Name	CS
Product Name	Marine Handing Pump
Model	Capacity (m3/h)	Pressure head (m)	Time (onece/min)	Suction head (m)	Piston stroke (kw)	Weight (kg)
CS-20	20	20-25	50	5	68	1.45
CS-20Y/H	20	25	50	6	68	0.33
CS-25Y/H	32	25	50	6	80	0.33
CS-32	40	20-25	50	5	90	0.33
CS-32Y/H	48	25	50	6	90	0.33
CS-40Y/H	65	25	50	6	90	0.36
Application	applicable for marine to transport freshwater, fuel sewage and water of no corrosivity, not suitable for transport liquid that contain any fiber and solid granules
Medium tempreture	Max.60℃
