HVG MARINE PUMP 0040

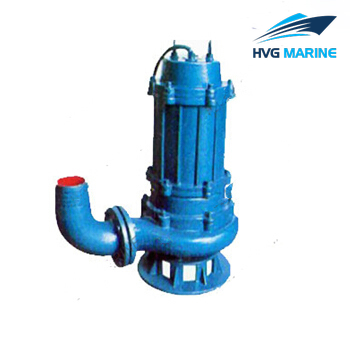

HVG MARINE PUMP 0040: CQW Marine Submersible Sewage Pump

Applications:

CQW series submersible sewage pump energy saving effect is remarkable, winding, no blockage prevention, automatic installation and automatic control, etc. Solid particles in the lining and long fiber waste, has a unique effect. For transport of urban sewage, industrial sewage and waste water, mix water, untreated sludge water, active sediment, industrial deposits,etc., used in construction, ditches, pumping in open-pit mining, irrigation and drainage, etc.

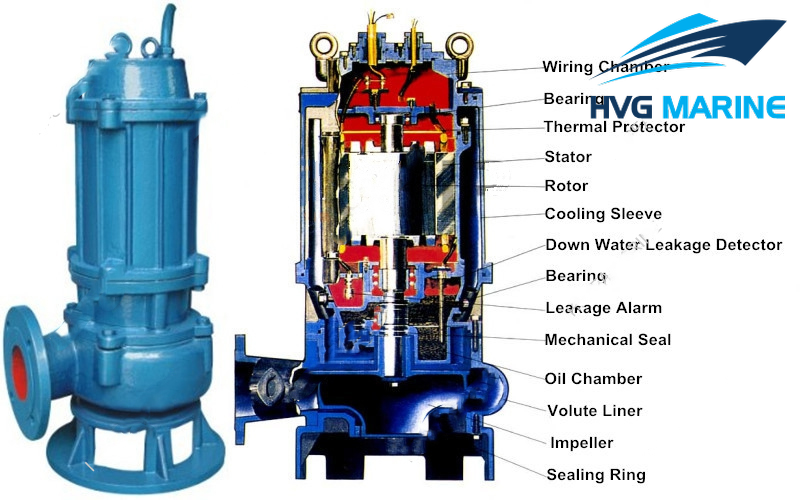

Structure:

Technical specification:

Main Technical Parameter

Series Name	CQW
Product Name	Marine Submersible Sewage pump
Feature	Structure Chart
Model	HS-CQW01
Capacity (m3/h)	8-37
Head (m)	7-40
Speed (r/min)	1390/2825/3450
Power (kw)	0.75-7.5
Efficiency (η%)	38.1-58
Application	mainly used in chemical, pharmaceutical and other industrial process,to play a unique role in transporting small flow and high head.
Medium tempreture	Max.80℃
Certification	CCS, BV etc.
