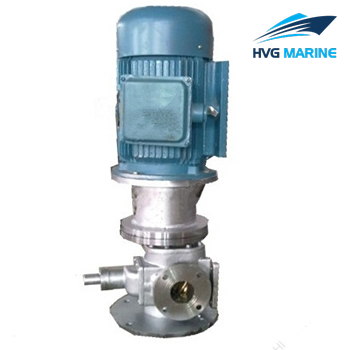

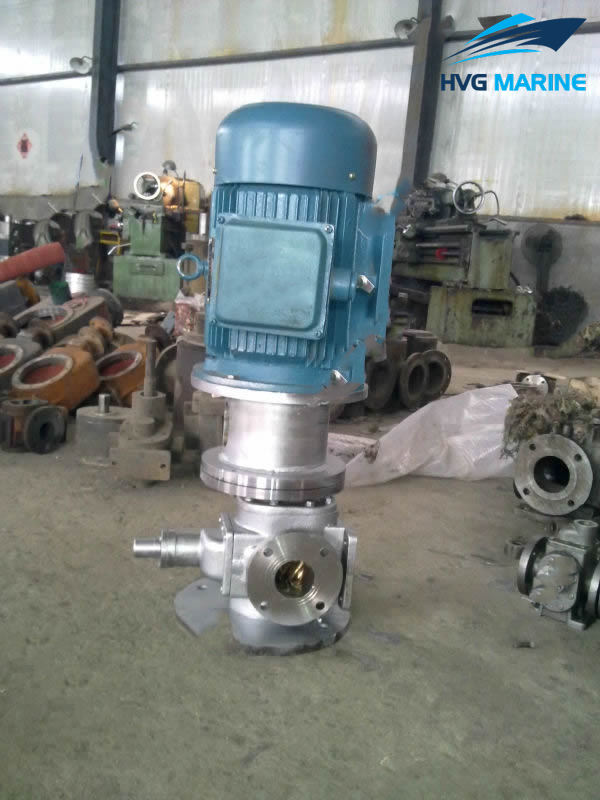

HVG MARINE PUMP 0023: LYB Marine Vertical ARC Gear Pump
Applications:
LYB vertical arc gear pump is for oil or equivalent liquid without solids and fiber with normal temperature below 300°C. It is mainly used as oil delivering pump or boost pump in oil system or plants.
Model Explanation:
| Working Principle: | Gear |
| Main applications: | Oil |
| Driver: | Electric motor |
| Power Specs: | 380/415 V 3phase; 50hz/60hz,etc |
| Max. permissible fluid temperature: | 80 °C |
| Type of connection: | Flange, Coupled. |
| Installation position: | Horizontal |
| Casing/Inner parts material: | Cast iron, /Cast iron, Bronze |
| Shaft seal type: | Shaft seal ring; Mechanical seal; Packing Seal |
| Free passage: | 00 mm |
| Maximum viscosity: | 1X103CST |
| Maximum drive rating: | 22 kW (30hp) |
| Maximum caliber: | 4 inch (100mm) |
| Maximum discharge-side pressure: | 0.6 mpa (6bar) |
|
Model |
Diameter |
Rated Capacity (m3/h) |
Rated Pressure | |||
|
Inlet&Outlet |
60Hz |
50Hz |
Mpa |
|||
| 1180rpm | 900rpm | 970rpm | 720rpm | |||
| LYB20 | φ100&φ80 | 24 | 20 | 0.6 | ||
| LYB25 | 30 | 25 | ||||
| LYB30 | φ125&φ100 | 36 | 30 | |||
| LYB40 | φ150&φ125 | 48 | 40 | |||
| LYB50 | 61 | 50 | ||||
| LYB65 | 65 | 55 | ||||
| LYB80 | 80 | 65 | ||||
| LYB90 | 90 | 75 | ||||
| LYB100 | φ200&φ150 | 100 | 85 | |||
| LYB150 | 150 | 125 | ||||
| LYB175 | φ250&φ200 | 175 | 145 | |||
| LYB200 | 200 | 165 | ||||
