HVG MARINE PUMP 0012: CYZ Marine Self-Priming Centrifugal Pump

Applications:

CYZ Series marine horizontal self-priming centrifugal oil pump are used at boats and ships transport petrochemicals such as petrol, coal oil and diesel oil. The temperature of medium can be between 20 degrees below zero and 80 degrees. This series pump is a high quality marine cargo oil pump, it also be suitable oil transport to the land oil tanker and oil tanker car and so on. It is able to carry seawater and fresh water less than 80 degrees. When used non-corrosive mechanical seal it can be transport chemistry liquid.

Features

This marine pump belongs to self-priming centrifugal oil pump, it’s features are simple construction, easy operation, well moving, convenient repairing, high displacement, high efficiency and wide application slope etc.

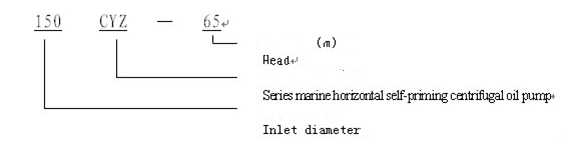

Model Explanation:

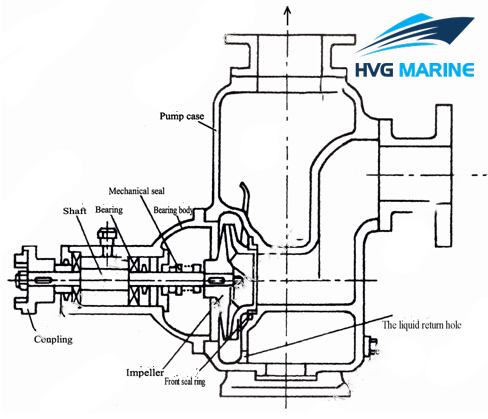

Structure:

Technical specification:

Performance Parameter

No.	Model	Capacity		Lift (m)	Pump NPSH (m)	Self-absorption properties (min/5m)	Speed (r/min)	Shaft power (kw)	Diameter (mm)	Motor
No.	Model	m3/h	L/min	Lift (m)	Pump NPSH (m)	Self-absorption properties (min/5m)	Speed (r/min)	Shaft power (kw)	Diameter (mm)	Model	Power (kw)
1	25CYZ-27	3	50	27	3	3	2900	0.6	25	YB801-2	0.75
2	40CYZ-20	6.3	105	20	3.5	2	2900	0.88	40×32	YB802-2	1.1
3	40CYZ-40 (50CYZ-40)	10	167	40	3.5	1.5	2900	2.8	50×40 (50)	YB112M-2	4
4	50CYZ-12	15	250	12	3.5	2.5	2900	1.1	50	YB90S-2	1.5
5	50CYZ-20	18	300	20	3.5	2	2900	1.8	50	YB90L-2	2.2
6	50CYZ-35	14	233	35	3.5	1.5	2900	2.7	50	YB112M-2	4
7	50CYZ-50	12.5	208	50	3.5	1.5	2900	4.3	50	YB132S1-2	5.5
8	50CYZ-60	15	250	60	3.5	1.5	2900	6.3	50	YB132S2-2	7.5
9	50CYZ-75	20	333	75	3.5	1.5	2900	9.9	50	YB160M1-2	11
10	65CYZ-15	30	500	15	4	2	2900	1.92	65	YB100L-2	3
11	65CYZ-30	25	416	30	4	2	2900	3.2	65	YB112M-2	4
12	80CYZ-13	35	583	13	4	3.5	2900	1.9	80	YB100L-2	3
13	80CYZ-17	43	716	17	4	2	2900	3.1	80	YB112M-2	4
14	80CYZ-25	50	833	25	4	1.5	2900	5.2	80	YB132S2-2	7.5
15	80CYZ-32	50	833	32	4	1.5	2900	6.8	80	YB132S2-2	7.5
16	80CYZ-55	60	1000	55	4	1.5	2900	15.0	80	YB160L-2	18.5
17	80CYZ-70	60	1000	70	4	1.2	2900	20.1	80	YB180M-2	22
18	100CYZ-40	100	1667	40	4	2	2900	18.3	100	YB180M-2	22
19	100CYZ-40A	100	1667	40	4	1.5	1470	18.5	100	YB180L-4	22
20	100CYZ-65	100	1667	65	4	2	2900	27.7	100	YB200L1-2	30
21	100CYZ-75	70	1167	75	4	2	2900	24.2	100	YB200L1-2	30
22	150CYZ-55	160	2667	55	5	2	2900	38.1	150	YB225M-2	45
23	150CYZ-65	170	2833	65	5	1.3	1470	51.0	150	YB250M-4	55
24	200CYZ-63	280	4667	63	5	1.5	1480	75.1	200	YB280M-4	90
25	80CYZ-125	50	833	125	4	1.5	2900	41.3	80	YB250M-2	55
26	100CYZ-125	100	1667	125	4	1.5	2900	69.4	100	YB280S-2	75
27	150CYZ-125	150	2500	125	5	1.5	2900	93	150	YB315S-2	110
28	200CYZ-125	200	3333	125	5	1.5	2900	119.7	200	YB315M-2	132
29	250CYZ-50	400	6666	50	6	1.5	1480	77.2	250	YB280M-4	90
