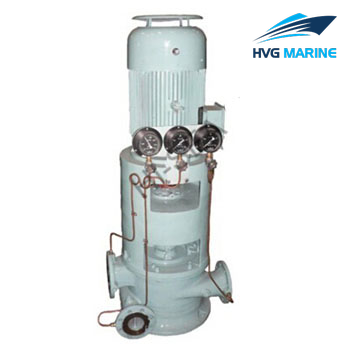

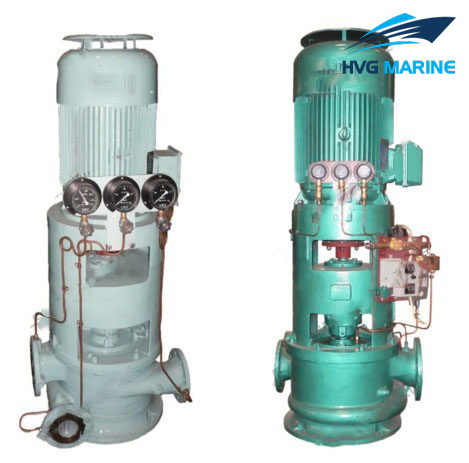

HVG MARINE PUMP 0008: CLN Marine Vertical Double-stage Double-outlet Centrifugal Pump

Applications:

CLN Series marine pump is used to deliver fresh water and seawater, widely used for cooling, fire control, chamber loading and other general water drainage. It can be used as the alkali liquid pump and distilling pump in seawater desalination. It can also be used for industrial and urban water supply. The temperature of delivery medium shall not be over 80℃.

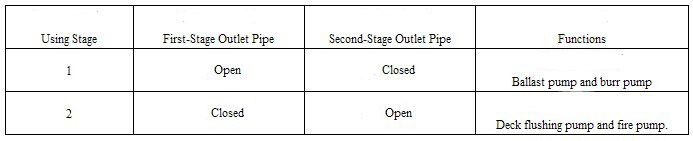

CLN Series marine vertical double-stage double-outlet centrifugal pump has two stage, different with common double-stage pumps. Except the outlet at the second stage, there is also manifold outlet at the first stage. As a kind of general pump, it is most appropriate for ships. Generally, it can be used under the following conditions:

The pump rotates anticlockwise viewed from the top of motor.

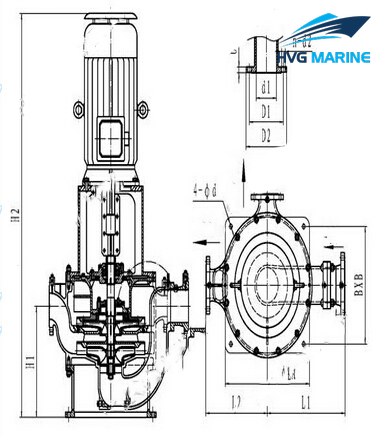

Structure:

Technical specification:

Performance Parameter

1.Performance parameters when power frequency is 50Hz

Type	(50Hz3φ380V) Main technical parameter				Motor type & power (kW)	Weight (Kg)
Type	Capacity (m3/h)	Head (m)	Speed (r/min)	NPSHr (m)	Motor type & power (kW)	Weight (Kg)
CLN80-340/2A	51/51	29.5/65	1450	2.8	Y180L-4H22	510
CLN80-340/2C	116/58	24/61	1450	3.4	Y180L-4H22	545
CLN80-340/2D	112/54	15/51.5	1450	4.3	Y180M-4H 18.5	520
CLN80-340/2E	141/62	25.5/59	1450	4.2	Y180L-4H22	530
CLN100-380/2A	95/91	36.5/86	1450	4.1	Y225M-4H45	786
CLN100-380/2C	149/95	27.5/77	1450	3.7	Y225M-4H45	781
CLN100-380/2D	141/95	16.5/60.5	1450	3.6	Y225S-4H37	740
CLN100-380/2E	199/99	23.5/69.5	1450	4.2	Y225M-4H45	775
CLN125-380/2A	124/120	33.5/77	1450	4	Y250M-4H55	915
CLN125-380/2C	215/120	23.5/65	1450	4.2	Y225M-4H45	828
CLN125-380/2D	199/108	17/60.5	1450	4.2	Y225S-4H37	795
CLN125-380/2E	257/124	24/68.5	1450	3.5	Y250M-4H55	925
CLN150-380/2A	199/182	33/79	1450	5.1	Y280S-4H75	1082
CLN150-380/2C	348/174	22/71.5	1450	4.9	Y280S-4H75	1078
CLN150-380/2D	265/166	14.5/62	1450	4.2	Y250M-4H55	902
CLN150-380/2E	389/182	22/70	1450	4.6	Y280S-4H75	1080

2.Performance parameters when power frequency is 60Hz

Type	(60Hz 3φ440V)main technical parameter				Motor power (kW)	Weight (kg)
Type	Capacity (m3/h)	Head (m)	Speed (r/min)	NPSHr (m)	Motor power (kW)	Weight (kg)
CLN80-340/2A	60/62	43/95	1750	3.2	Y225S-4H37	710
CLN80-340/2C	140/70	35/89	1750	4	Y225S-4H37	710
CLN80-340/2D	135/65	22/75	1750	5.3	Y200L-4H30	640
CLN80-340/2E	170/75	37/86	1750	5.2	Y225S-4H37	710
CLN100-380/2A	115/110	53/125	1750	5.1	Y280S-4H75	970
CLN100-380/2C	180/115	40/112	1750	4.5	Y280S-4H75	970
CLN100-380/2D	170/115	24/88	1750	4.4	Y250M-4H55	885
CLN100-380/2E	240/120	34/101	1750	5.2	Y280S-4H75	970
CLN125-380/2A	150/145	49/112	1750	5	Y280M-4H90	1050
CLN125-380/2C	260/145	34/95	1750	5.2	Y280S-4H75	1010
CLN125-380/2D	240/130	25/88	1750	5.2	Y280S-4H75	1010
CLN125-380/2E	310/150	35/100	1750	4.2	Y280M-4H90	1050
CLN150-380/2A	240/220	48/115	1750	6.6	Y315M-4H132
CLN150-380/2C	420/210	32/104	1750	6.2	Y315M-4H132
CLN150-380/2D	320/200	21/90	1750	6	Y280M-4H90	1130
CLN150-380/2E	470/220	32/102	1750	5.8	Y315S-4H110
