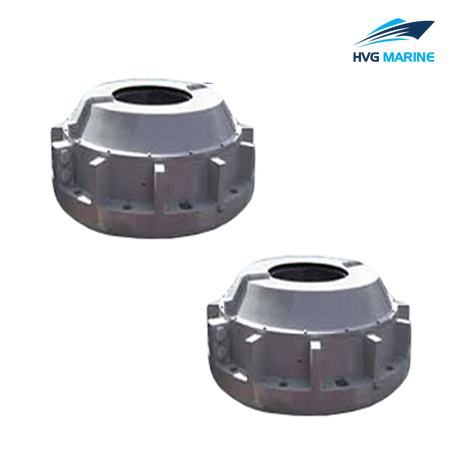

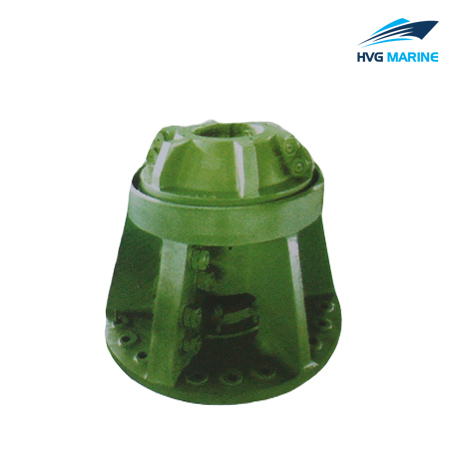

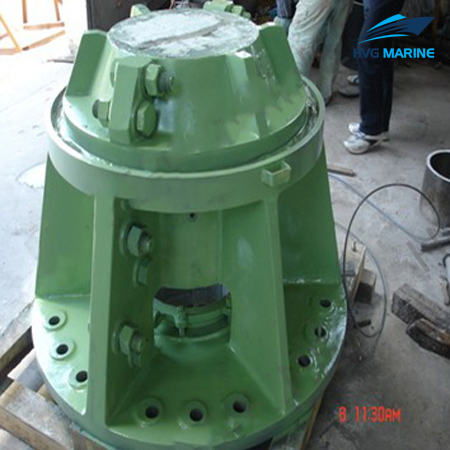

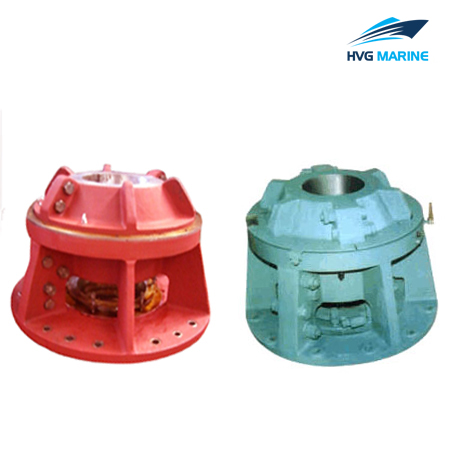

HVG MARINE PROPULSION EQUIPMENT 0167: Plane Friction Watertight Rudder Carrier CB/T3282-2001

Approved by standard of CB/T3282-2001, this product is plane friction watertight rudder carrier. It is suitable for large and medium vessels with a rudder stock diameter above 200mm. The sizes in the following table are for reference only. The product can be manufactured according to customer’s request. Besides, certificates such as CCS, BV, ABS, GL, and LR can be offered according to clients’ need.

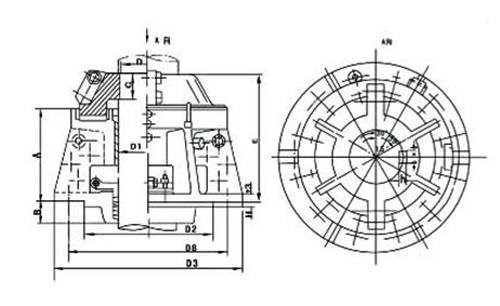

Drawing of Plane Friction Watertight Rudder Carrier

Technical specification:

Drawing and specification:

Dimensions (mm)												Fastening Bolt
D	D₁	D₂	D₃	D₈	A	B	C	E	H	t₃	b×h×t	M30×12
200	216	466	670	590	330	80	90	450	20	30	45×25×80	M36×12
220	236	550	790	700	375	85	100	505	20	30	45×25×90	M36×12
240	258	620	860	770	430	90	100	560	20	30	45×25×90	M36×12
260	278	680	920	830	460	95	110	600	20	30	50×28×100	M36×12
280	300	710	960	870	515	90	110	665	20	40	60×32×100	M42×12
300	320	720	1110	940	545	95	120	705	20	40	60×32×110	M42×18
320	342	780	1180	1010	570	100	120	730	25	40	60×32×110	M42×18
340	362	840	1240	1070	630	105	130	800	25	40	60×32×120	M48×18
360	384	900	1300	1130	690	90	130	880	25	60	60×32×120	M48×18
380	404	960	1360	1190	755	95	140	955	25	60	60×32×130	M48×18
400	426	960	1360	1190	600	110	140	800	25	60	70×36×130	M42×12
420	446	1020	1420	1250	635	110	150	845	30	60	70×36×140	M42×18
440	468	1080	1480	1310	665	105	150	885	30	70	70×36×140	M42×18
460	488	1140	1540	1370	700	110	160	930	30	70	70×36×150	M42×18
480	510	1210	1610	1440	730	115	160	960	30	70	80×40×150	M42×18
500	530	1270	1670	1500	760	120	170	1000	30	70	80×40×160	M42×18
