HVG MARINE PROPULSION EQUIPMENT 0083: Tunnel Bow Thruster

Tunnel bow thruster is the main equipment of the side propulsion for vessels. It includes one set of tunnel, propeller hub with blades, propeller shafting, mesh gear and driving shaft in it. The maximum input power is from 63KW to 1000Kw. And the maximum thrust is from 95KN to 155KN. Our tunnel bow thrusters can be driven by electric motor, diesel engine, and hydraulic motor. The driven motor drive the driving shaft of the thruster and the propeller shaft is rotated at low speed through the bevel gears. And then the thruster will push the ships toward the starboard or port, so it greatly improves the maneuverability of ship.

Features:

1. Type: FPP (fixed pitch propeller) tunnel bow thruster
2. Max. power input: 63KW to 1000KW
3. Max. thrust: 95KN to 155KN

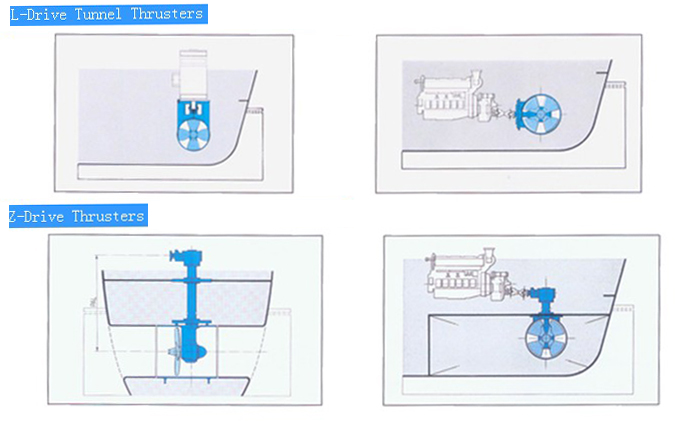

4. Drive force: electric motor, diesel engine, hydraulic motor
5. Certificates approved: CCS, BV, ABS, DNV, NK, KR, GL, RINA, etc.
6. OEM service available

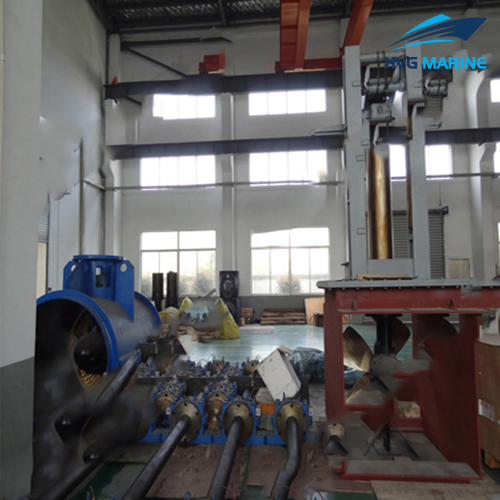

Product displaying:

Technical specification:

Specification:
Model

Model	TBT010		TBT060		TBT110		TBT160		TBT170
Max. input speed (min-1)	1470	1170	1470	1170	1470	1170	1470	1170	1470	1170
Frequency (Hz)	50	60	50	60	50	60	50	60	50	60
Max. input power (KW/h.p.)	63/86	50/68	125/170	100/136	200/272	200/272	280/380	280/380	420/570	336/457
Max. thrust (KN)	9.5	7.9	17.5	14.5	28	28	42	42	63	51
Standard barrel length (mm)	1000		1000		1000		1500		1500
Tunnel thickness (mm)	12		12		15		20		20
Propeller dia. (mm)	500		630		800		1000/1100		1300
Weight (kg)	300		430		730		1450		1510

Model	TBT300T		TBT550		TBT1010
Max. input speed (min-1)	1770	1470	1470	1170	1170	970
Frequency (Hz)	60	50	50	60	60	50
Max. input power (KW/h.p.)	550/748	550/748	900/1224	725/986	1250/1700	1000/1360
Max. thrust (KN)	72	72	125	110	183	155
Standard barrel length (mm)	1500		2000		2500
Tunnel thickness (mm)	20		20		20
Propeller dia. (mm)	1500		1750		2100
Weight (kg)	2450		2680		3200
