HVG MARINE PROPULSION EQUIPMENT 0063

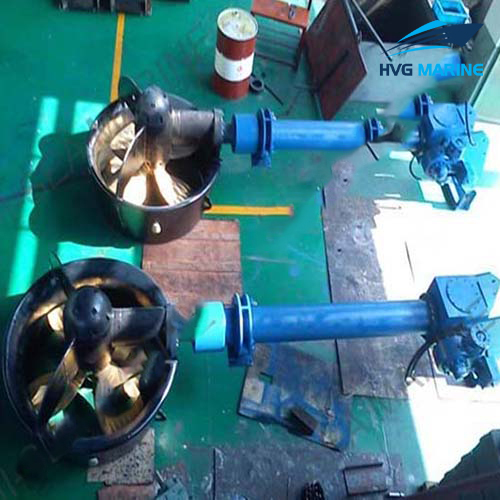

HVG MARINE PROPULSION EQUIPMENT 0063: Deck Mounted Azimuth Thruster

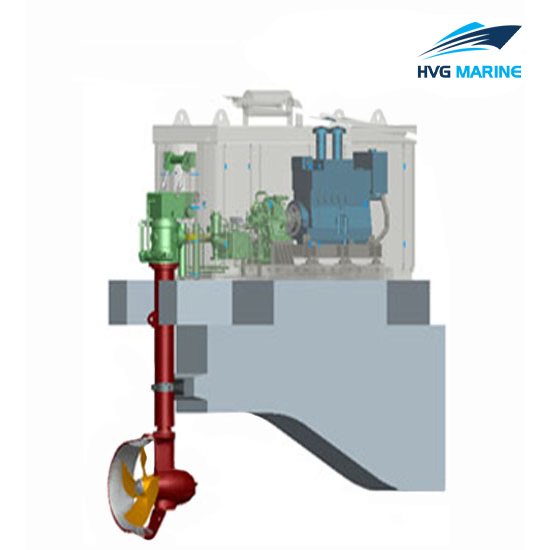

Deck installation is a complete propulsion package .It is a reliable and compact propulsion plant. The chassis carries the totally enclose propulsion system. The power of the diesel engine is transmitted to the rudder propeller through an elastic coupling, a hydraulic clutch and a universal shaft. The chassis is constructed with a hydraulic system, an electric control box, daily fuel tank and so on system units. Installation is fast and simple because they are essentially self-contained. Only to connect the minimum hoses and marine electrical cable can make it available to obtain thrust. The deck installation unit merely has to be mounted and bolted onto a foundation of deck. Rudder propeller is mounted at the rear chassis.

Features:

1. All components are installed on the deck foundation and are protected with a solid box
2. The prime mover is diesel engine, and the torque is transmitted via clutch and universal shaft
3. The electric control system and emergency alarming system are integrated into one control cabinet
4. The lifting and tilting of the azimuth thruster is realized via the hydraulic system
5. Easy to mount

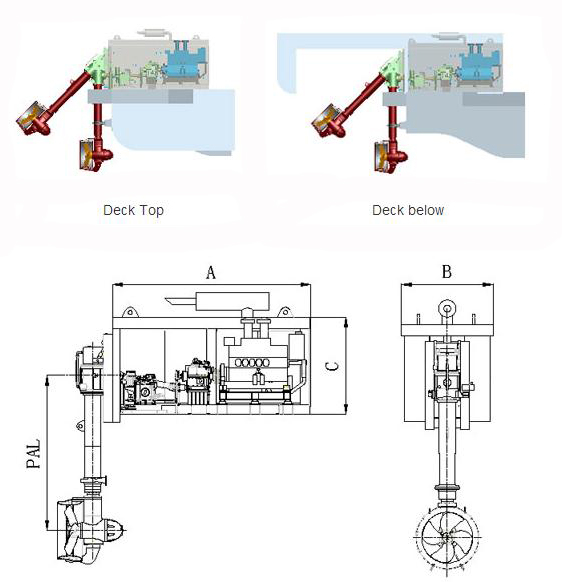

Installation Types:

Technical specification:

Technique data:

Model	HS-RP60	HS-RP100	HS-RP180	HS-RP200	HS-RP330	HS-RP560
Max. input power (KW/HP)	130/180	260/360	350/480	410/560	620/850	735/1000
Rated input speed (r/min)	2500	2100	1800/2000	1800/2100	1800	1800
Propeller diameter (mm)	700	850	1050	1100	1400	1600
Dimension (L x W x H cm)	3250x1400x1700	4100×1800×2000	4500×1800×2300	4300×1800×2300	5500×2000×2700	6400×2500×3300
Weight (kg)	2500	5000	7000	8000	11500	15000
Max. PAL value	3300	3500	4900	5000	4800	7100
