HVG MARINE PROPULSION EQUIPMENT 0052

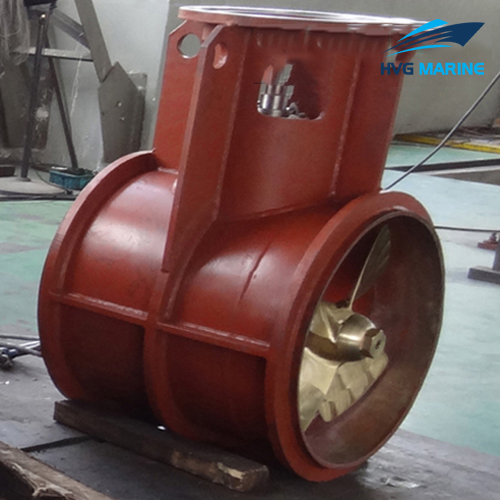

HVG MARINE PROPULSION EQUIPMENT 0052: CPP Tunnel Thruster

Made of copper, steel or aluminum alloy, this product is tunnel thruster with controllable pitch propeller. It is primarily used for docking, slow speed maneuvering, emergency steering and station keeping at zero or slow forward speed. It is installed transversely in the bow of the vessel. It is approved by certificates of CCS, BV, DNV, ABS, NK, KR, GL, RINA, etc. If you are interested in our CPP tunnel thrusters, please be free to contact us, we will answer you timely.

Features:

1. Propeller type: CPP
2. Propeller dia.: 1100mm～3000mm
3. Power range: 200KW～2930KW
4. Max. thrust: 46KN～462KN
5. Drive force: diesel engine, electric motor, hydraulic motor
6. Certification: ABS, BV, CCS, DNV, KR, NK, GL, RINA, LR, etc.
7. Advantages: superior strength, less noise and vibration, easy installation

Technical specification:

Technique data:

Propeller diameter(mm)	Power(KW)	Max thrust(KN)	Propeller type
1100	200~330	46	CPP
1300	310~470	66	CPP
1650	450~760	108	CPP
1850	720~1020	132	CPP
2000	980~1270	165	CPP
2250	1200~1550	235	CPP
2500	1450~2100	326	CPP
2750	2060~2480	378	CPP
3000	2300~2930	462	CPP
