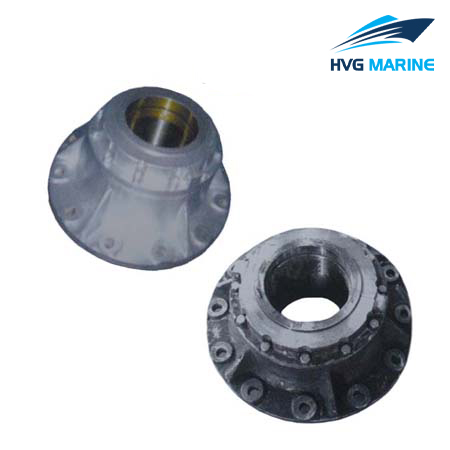

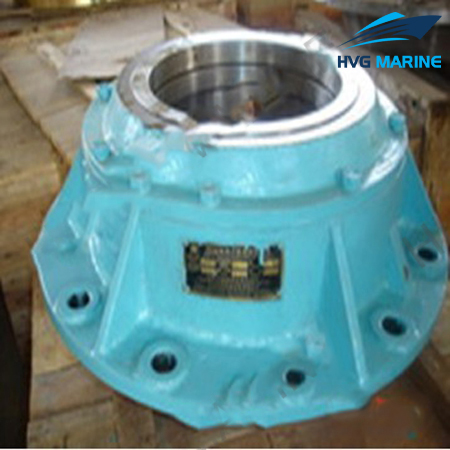

HVG MARINE PROPULSION EQUIPMENT 0037: CB*789-87 Roller Upper Rudder Carrier

This product is marine roller upper rudder carrier. We can supply three types of this rudder carrier: type-A, type-B and type-C. Type A and B are suitable for small and medium vessels. Type C is suitable for small and medium vessels whose rudder stock has a larger diameter. This marine roller upper rudder carrier is approved by CB*789-87 standard. If you have interest in our product, please feel free to contact us. We will give you a satisfied reply.

Technical specification:

Diameter of applicable tiller

Type	Name	Diameter of applicable tiller	Applicable scope
A	Light roller upper rudder bearing	ø40-ø150	Apply to the rudder whose load isn’t heavy and the revolving degree isn’t large
B	Heavy roller upper rudder bearing	ø120-ø340	Apply to the hanging rudder whose load is heavy and the revolving degree is large
C	Watertight roller upper rudder bearing	ø120-ø400	With seal function, apply to the hanging rudder whose load is heavy and the revolving degree is large
