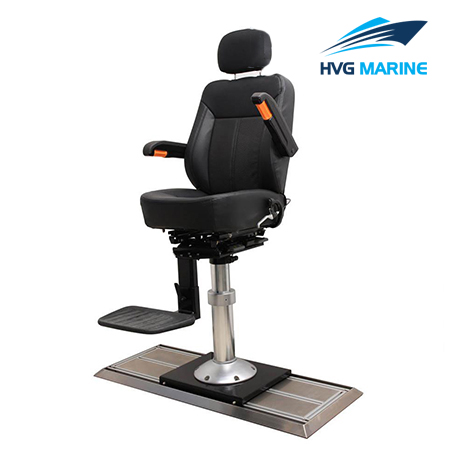

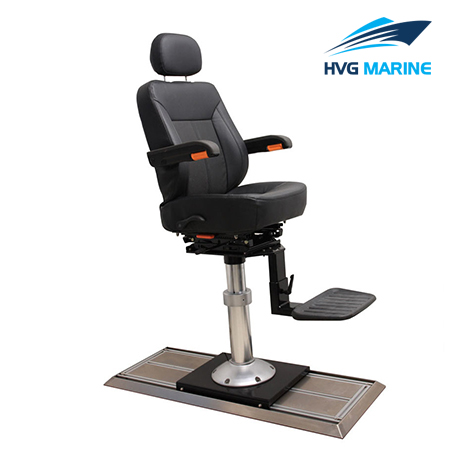

HVG MARINE OUTFITTING EQUIPMENT 0370: Marine Helm Chair
Product Description
- The shape and color of the seat’s surface can be customized according to customers’ requirements.
- The material of the seat’s surface is made of black high quality PU imitation leather.The real leather or cloth art can be customized according to customers’ requirements.
- The standard rail length of the seat is 1.2meters.If you wan to lengthen,the rail can be customized according to the requirements.
Function:
- 1.Ergonomic design;
- 2. Seat can move in high strength double-slide rail;
- 3.Adjustable backrest and headrest;
- 4.Seat height may be angle adjusted;
- 5.Seats can be moved back and forth;
- 6.Folding / angle-adjustable comfortable seat armrest;
- 7.Seat can rotated 360 degrees, multi-point positioning;
- 8.Foot pedal height adjustable / folding;
- 9.Column can be vertically lifting
Material：
- 1.Slide rail and positioning base uses the high strength aluminum alloy, inside and outside decorative mosaic made of stainless steel;
- 2.Lifting column with aluminum alloy、steel、stainless steel synthesis;
- 3.The seat lifting and tilting, move back and forth, back angle adjusting are used in steel structure;
- 4.The seat back and the seat cushion adopts the steel inner core and PU cold foam forming disposable sponge synthesis, outsourcing leather or cloth;
- 5.Pedal steel plate inner core and environmentally friendly rubber synthetic;
- 6. Pneumatic lifting core components pneumatic bar the use of German imports of Stabilus;
Function data：
- 1.Upper part of the seat can be moved back and forth of120mm,height adjustment 60mm, seat inclination angle range of ±12°;
- 2.Seat backrest with adjustable angle of 85°-150°, the headrest adjusted up and down 50mm, handrest multi-point positioning control;
- 3.The seat of pneumatic lifting regulating range 0-150mm；
- 4.The seat can rotate 360°and locked ,4-point positioning control;
- 5.Seat rail slide in 0-6000mm mobile,500mm rail width and depth 28mm
- 6.Seat pedal can rotate 90° and regression, upper and lower position adjusting range of 0-50mm;
- 7.Seat can bear more than 150FT.LB torsion, reached AD grade standard;

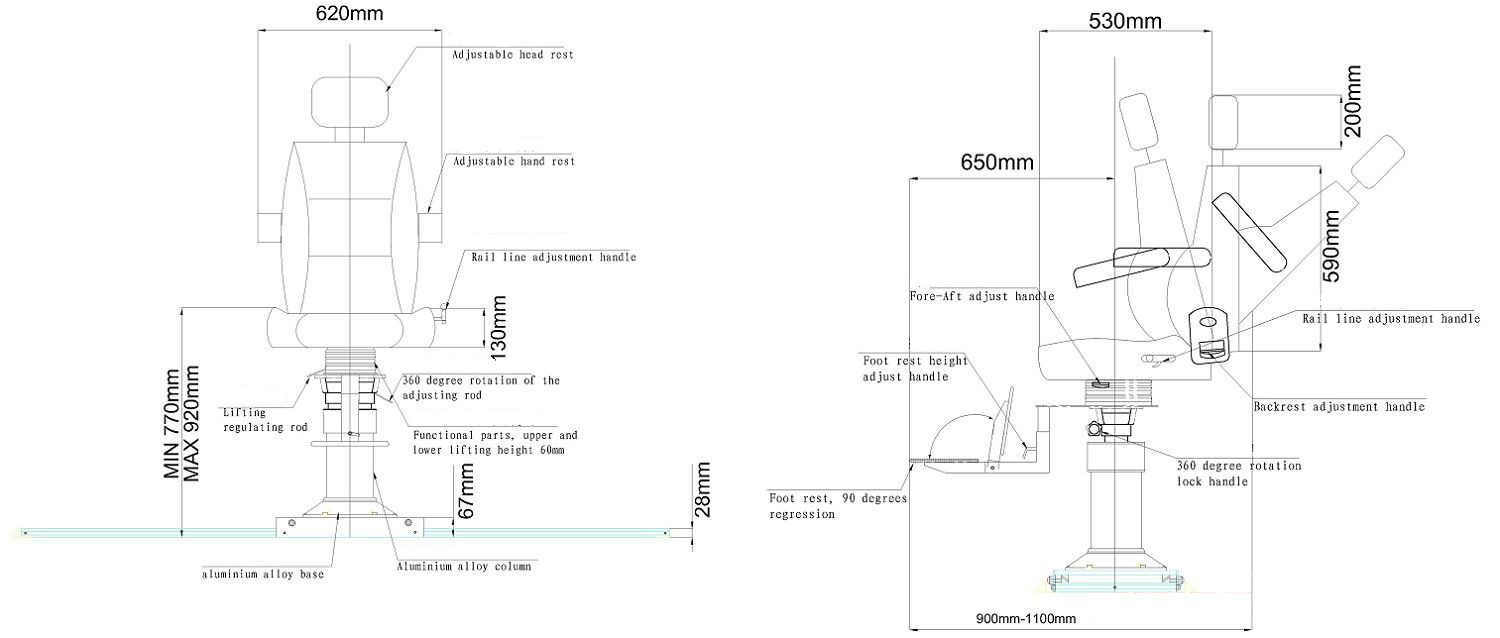

Drawing:
