HVG MARINE OUTFITTING EQUIPMENT 0359: Marine Steel Fixed Rectangular Window

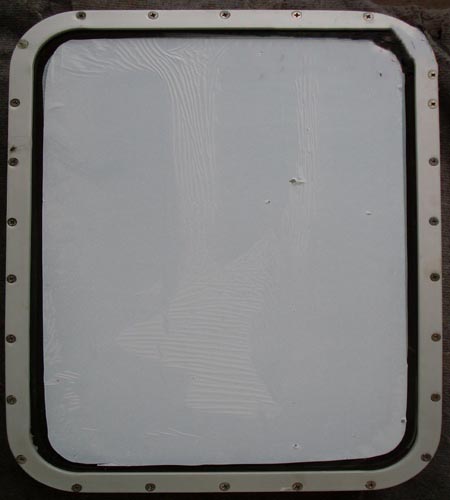

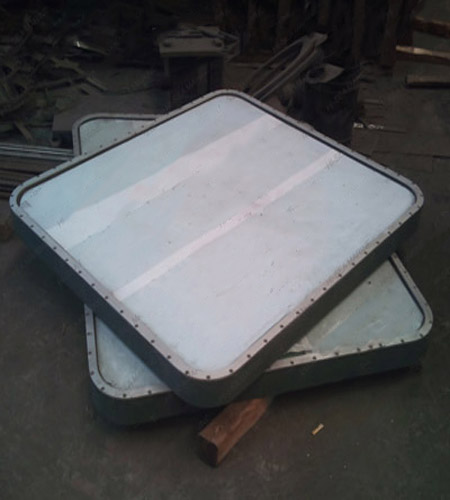

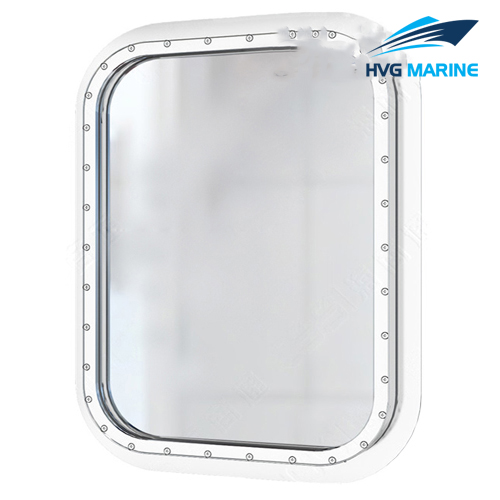

This product is a kind of non opening rectangular windows made with steel and used for deck house, light steel door and skylight. It has two types: type A-fixed window, type B-fixed window with guard bar. This steel fixed rectangular window for ship is meets all the requirements of these certificates CCS, DNV, BV, LR, KR, NK, etc.

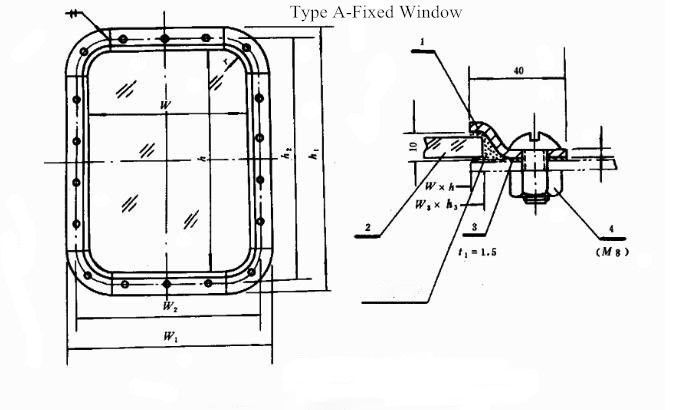

Drawing type A:

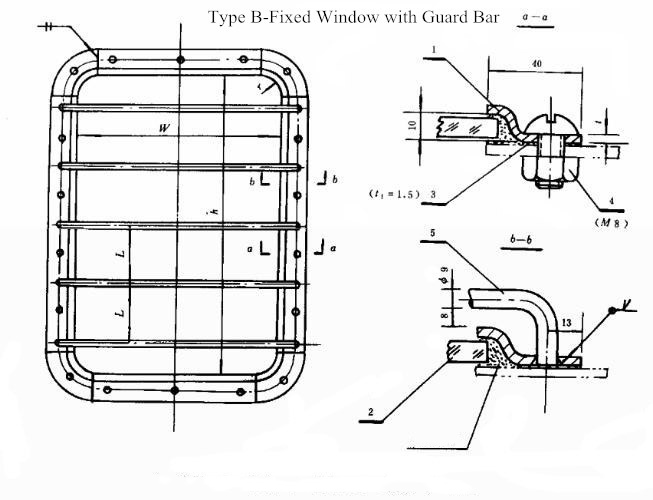

Drawing type B:
mm
|
Size of clear and opening |
External size |
QTY of bolt |
Glass |
Weight (kg) |
|||
|
W×h |
r |
W1×h1 |
W2×h2 |
W3×h3 |
thickness |
||
|
300×425 |
50 |
380×505 |
354×479 |
16 |
314×439 |
8 |
3.9 |
|
355×500 |
50 |
435×580 |
409×554 |
20 |
369×514 |
8 |
5.0 |
|
400×560 |
50 |
480×640 |
454×614 |
20 |
414×574 |
8 |
6.0 |
|
450×630 |
100 |
530×710 |
504×684 |
22 |
464×644 |
8 |
6.3 |
|
500×710 |
100 |
580×790 |
554×764 |
24 |
514×724 |
10 |
9.4 |
|
560×800 |
100 |
640×880 |
614×854 |
28 |
574×814 |
10 |
11.5 |
|
900×630 |
100 |
980×710 |
954×684 |
32 |
914×644 |
12 |
16.0 |
mm
|
Size of clear and opening |
External size |
Guard bar |
QTY of bolt |
Glass |
Weight (kg) |
||||
|
W×h |
r |
W1×h1 |
W2×h2 |
QTY |
L |
W3×h3 |
thickness |
||
|
300×425 |
50 |
380×505 |
354×479 |
5 |
90 |
16 |
314×439 |
8 |
4.9 |
|
355×500 |
50 |
435×580 |
409×554 |
6 |
90 |
20 |
369×514 |
8 |
6.4 |
|
400×560 |
50 |
480×640 |
454×614 |
6 |
95 |
20 |
414×574 |
8 |
7.6 |
|
450×630 |
100 |
530×710 |
504×684 |
6 |
100 |
22 |
464×644 |
8 |
7.9 |
|
500×710 |
100 |
580×790 |
554×764 |
7 |
100 |
24 |
514×724 |
10 |
11.5 |
