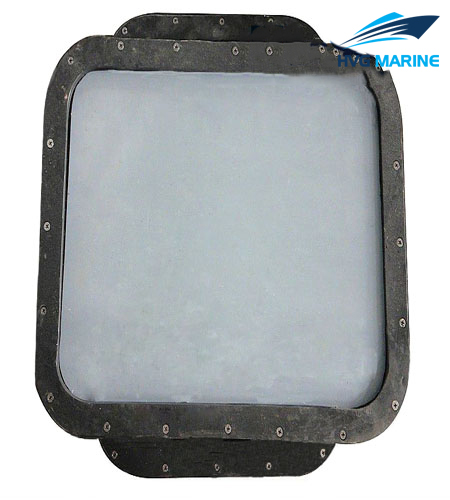

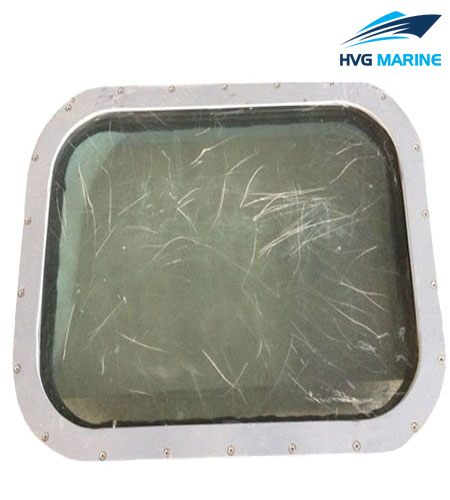

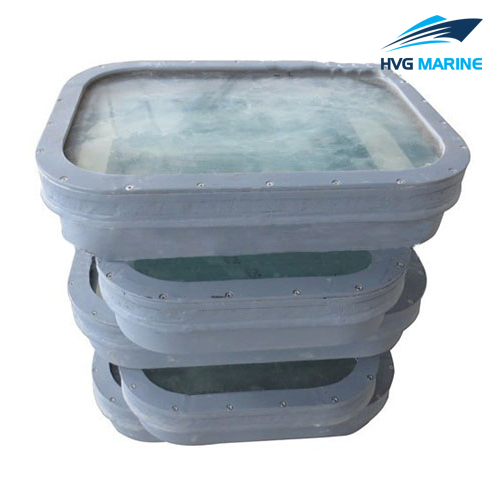

HVG MARINE OUTFITTING EQUIPMENT 0334: Fireproof Rectangular Window for Ship
This fire resistant widow is made with aluminum or steel, it is used for oil tanker, drilling platform, chemical vessel and oil area tug which has a less than 60℃ flash point. We can supply CCS, DNV, BV, LR, KR, and NK certificates about the fire proof fixed window. Besides, OEM service is available.

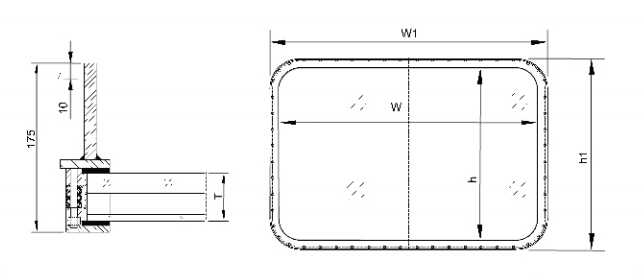

Drawing:
|
No. |
Nominal size w×h |
External size W1×h1 |
Glass thickness |
Fireproof rank |
||
|
1 |
300×425 |
R50 |
390×515 |
R95 |
45 |
A-60 |
|
2 |
355×500 |
445×590 |
||||
|
3 |
400×560 |
490×650 |
||||
|
4 |
450×630 |
R100 |
540×720 |
R145 |
||
|
5 |
500×700 |
590×800 |
||||
|
6 |
560×800 |
650×890 |
||||
|
7 |
900×630 |
990×720 |
||||
|
8 |
1000×710 |
1090×800 |
||||
|
9 |
1100×800 |
1190×890 |
||||
|
10 |
1200×800 |
1290×890 |
||||
Clear size is 400×560mm for A-60 class fireproof rectangular window—-fireproof rectangular window A60-400×560
