HVG MARINE OUTFITTING EQUIPMENT 0332

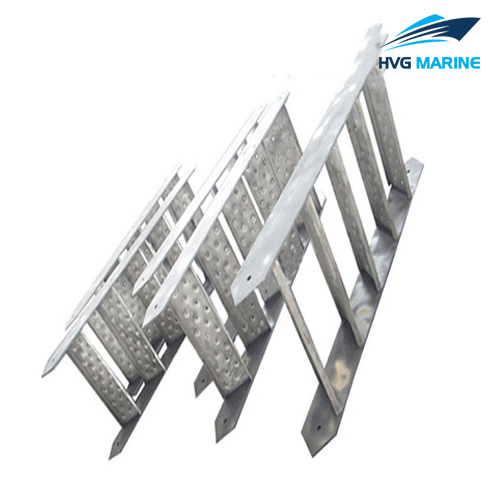

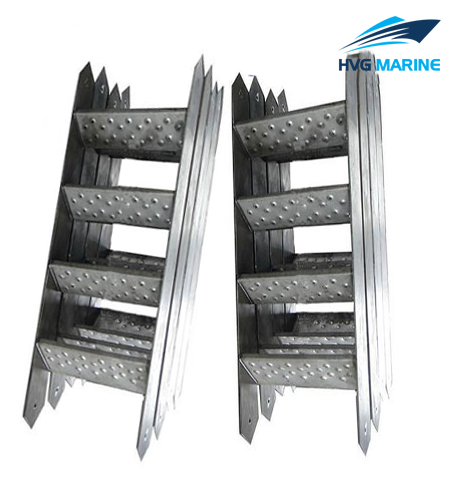

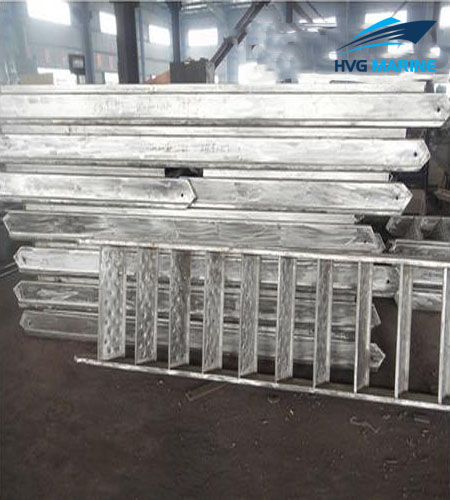

HVG MARINE OUTFITTING EQUIPMENT 0332: Marine Aluminum Inclined Ladder

Made of aluminum, this marine inclined ladder is used in the accommodation cabin of various vessels. Certificates like CCS, DNV, BV, LR, KR, NK, etc can be offered according to customer’s requirements. This marine inclined ladder has a light weight so it is portable.

Features:

Application: used in the accommodation cabin of various vessels
Light weight, easy to carry

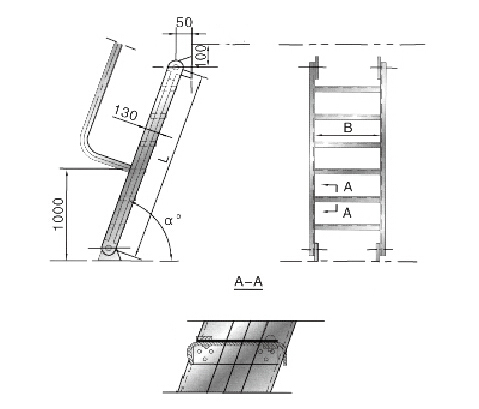

Drawing:

Technical specification:

Specification

Inclination (a)	B (mm)	L (mm)
60°	500, 600	800-3000
65°
70°

Identification example:

Inclination angle a=60°, width of ladder B=600mm and length of ladder L=2000mm for marine aluminum inclined ladder—-marine aluminum inclined ladder 60°×600×2000 GB738-77
