HVG MARINE OUTFITTING EQUIPMENT 0228: Marine Aluminum Trapezoid Window

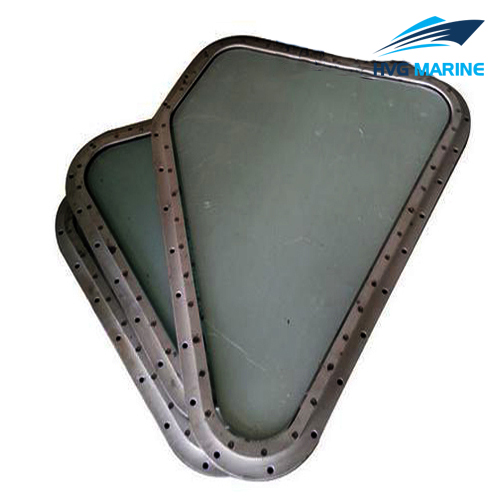

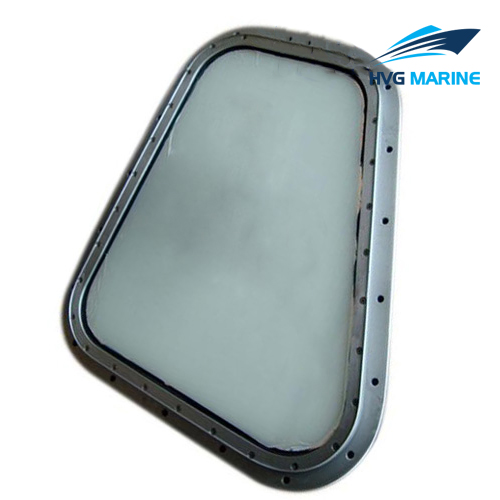

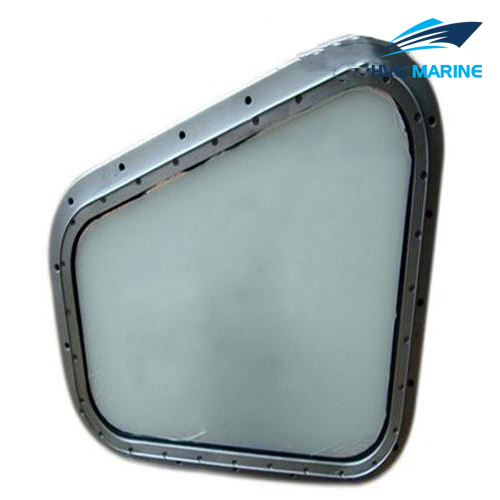

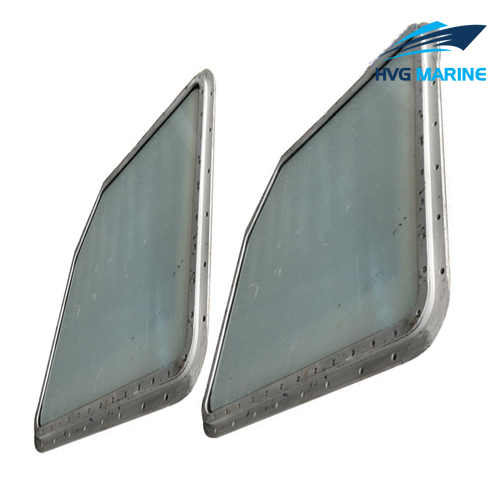

This trapezoid window for ship is made with aluminum. It is bolt fixed type and installed in the wheel house. The shape of this bolted fixed window can be rectangular, parallelogram or trapezoidal. To meet clients’ special demand, we can offer OEM service and produce the product as per customer’s drawings and samples.

Features:

1. Standard: CB/T 3226-95
2. Meet ISO9001-2000
3. Material: Aluminum/Aluminum alloy
4. Safety glass: Toughened glass
5. Type: bolt fixed
6. Application: Used for wheel house and meeting room on ship
7. Certificate: LR, BV, ABS, GL, NK, CCS, etc.

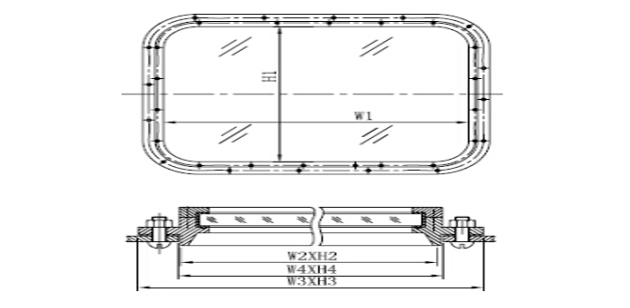

Drawing:

Technical specification:

Specifications:

Type	Frame type	Name	Frame material
A	BH	heating glass, bolted	aluminum alloy
A	BN	tempered glass, bolted	aluminum alloy

Type	Nominal size	Size of frame		Size of opening		Glass thick		Weight
A	W1×H1	W2×H2	W3×H3	W4×H4	r	BH	BN	BH	BN
	800×630	848×678	930×760	852×682	144	12	15	25.5	25.9
	800×710	848×758	930×840	852×762		12	15	28.1	28.7
	900×630	948×678	1030×760	952×682		12	17	28.2	30.0
	900×710	948×758	1030×840	952×762		12	17	30.9	32.9
	900×800	948×848	1030×930	952×852		12	17	33.9	36.1
	1200×630	1248×678	1330×760	1252×682		15	20	41.6	44.0
	1200×710	1248×758	1330×840	1252×762		15	20	45.9	48.6
	1200×800	1248×848	1330×930	1252×852		15	20	50.6	53.6
	1500×710	1548×758	1630×840	1552×762		15	20	56.1	59.4
	1500×800	1548×848	1630×930	1552×852		15	20	61.2	64.9
	1800×710	1848×758	1930×840	1852×762		15	20	66.3	70.3
	1800×800	1848×848	1930×930	1852×852		15	20	72.4	76.8
	1800×900	1848×948	1930×1030	1852×952		15	20	77.5	82.5
