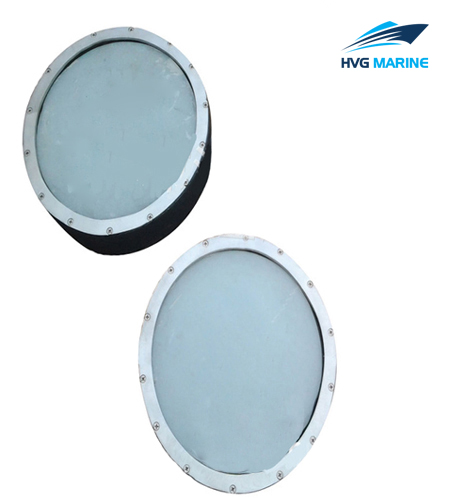

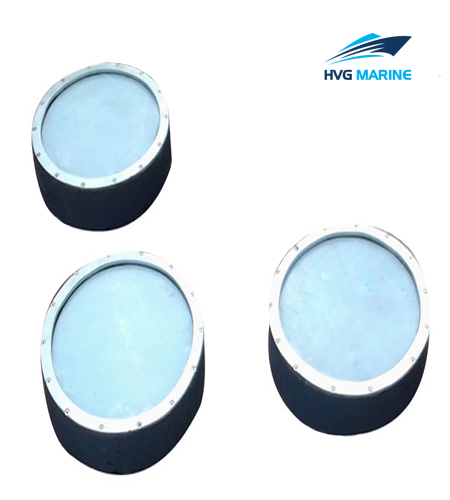

HVG MARINE OUTFITTING EQUIPMENT 0217: Marine Fixed Type Porthole

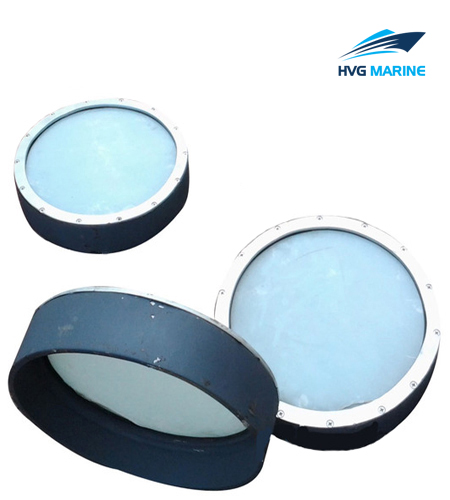

Approved by GB/T14413-93 standard, this fixed porthole is made with steel frame and toughened glass. It meets the requirements of SOLAS and ISO 9001-2008. This fixed side scuttle is weather-tight and antirust. It used for seas-going ship and inland ship.
|
Type |
Size of clear (mm) |
Opening way |
Installation |
Code of material made up |
Opening of the deadlight |
Glass |
Application |
||
|
Non-opening |
Bolted |
Welded |
|||||||
|
Light |
C |
200 250 300 350 400 450 |
Fixed (N) |
Bolted (B) Welded(W) |
220 330 110 |
210 220 230 |
— |
Clear glass (Y1) Ground glass(Y2) |
above bulkhead deck or free board deck of passenger ships, or the ends of superstructure |
