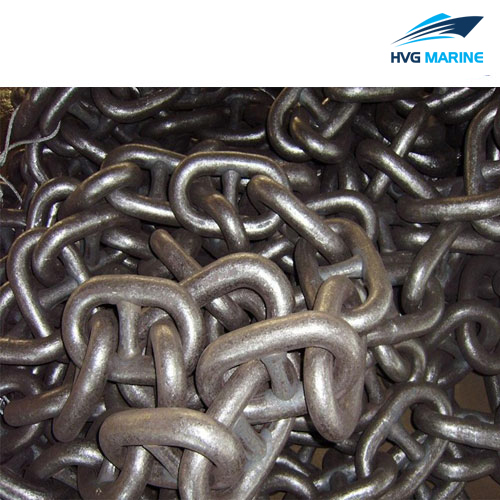

HVG MARINE MOORING EQUIPMENT 0254: Anchor Chain

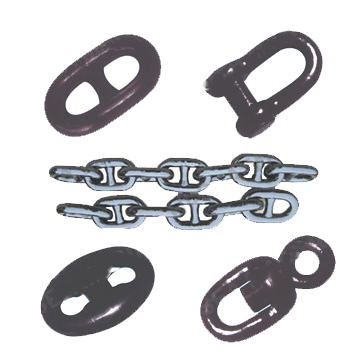

- 1. Type: Stud Link Anchor Chain/ Studless Link Anchor Chain
- 2. Grade: U2/U3
- 3. Diameter: 12.5mm-140mm
- 4. Certificate: ABS, LR, BV, NK, GL, DNV, RS, IRS, CCS

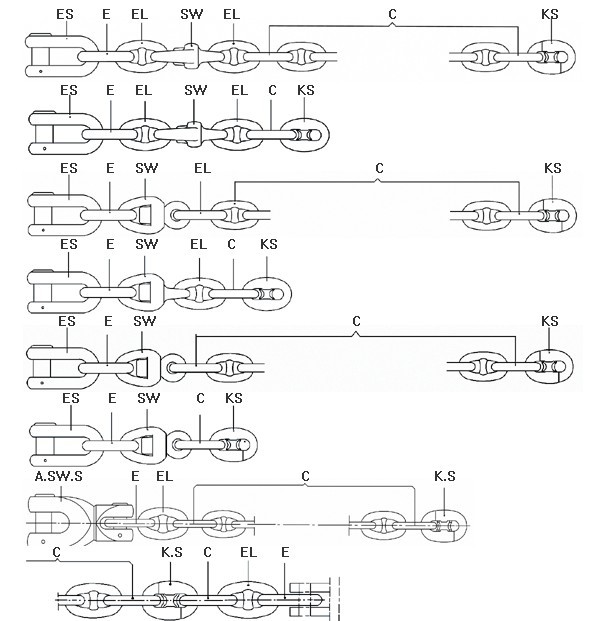

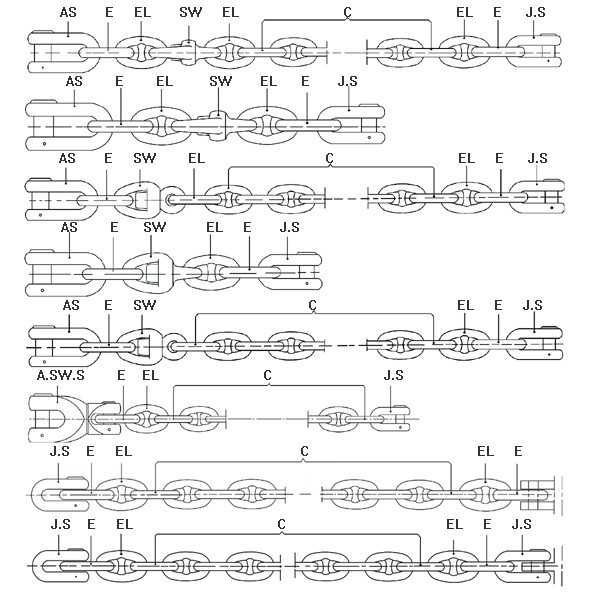

- 5. Joining Form of Anchor Chain
HVG MARINE MOORING EQUIPMENT 0254
Technical specification:
- Specifications
|
Diamter |
CHAIN LINK SIZE |
AM2 |
AM3 |
APPROX. |
|||
|
U2 STUD LINK CHAIN |
U3 STUD LINK CHAIN |
WEIGHT |
|||||
|
OUTSIDE |
OUTSIDE |
PROOF |
BREAKING |
PROOF |
BREAKING |
27.5M |
|
|
LENGTH |
WIDTH |
LOAD |
LOAD |
LOAD |
LOAD |
||
|
MM |
MM |
MM |
KN |
KN |
KN |
KN |
KG |
|
12.5 |
75 |
45 |
66 |
92 |
92 |
132 |
98 |
|
14 |
84 |
50.4 |
82 |
116 |
116 |
165 |
119 |
|
16 |
96 |
57.6 |
107 |
150 |
150 |
216 |
156 |
|
17.5 |
105 |
63 |
127 |
179 |
179 |
256 |
186 |
|
19 |
114 |
68.4 |
150 |
211 |
211 |
301 |
230 |
|
20.5 |
123 |
73.8 |
175 |
244 |
244 |
349 |
260 |
|
22 |
132 |
79.2 |
200 |
280 |
280 |
401 |
300 |
|
24 |
144 |
86.4 |
237 |
332 |
332 |
476 |
370 |
|
26 |
156 |
93.6 |
278 |
389 |
389 |
556 |
431 |
|
28 |
168 |
100.8 |
321 |
449 |
449 |
642 |
496 |
|
30 |
180 |
108 |
368 |
514 |
514 |
735 |
564 |
|
32 |
192 |
115.2 |
417 |
583 |
583 |
833 |
635 |
|
34 |
204 |
122.4 |
468 |
655 |
655 |
937 |
712 |
|
36 |
216 |
129.6 |
523 |
732 |
732 |
1050 |
800 |
|
38 |
228 |
136.8 |
581 |
812 |
812 |
1160 |
887 |
|
40 |
240 |
144 |
640 |
896 |
896 |
1280 |
1032 |
|
42 |
252 |
151.2 |
703 |
981 |
981 |
1400 |
1084 |
|
44 |
264 |
158.4 |
769 |
1080 |
1080 |
1540 |
1197 |
|
46 |
276 |
165.6 |
837 |
1170 |
1170 |
1680 |
1310 |
|
48 |
288 |
172.8 |
908 |
1270 |
1270 |
1810 |
1438 |
|
50 |
300 |
180 |
981 |
1370 |
1370 |
1960 |
1546 |
|
52 |
312 |
187.2 |
1060 |
1480 |
1480 |
2110 |
1661 |
|
54 |
324 |
194.4 |
1140 |
1590 |
1590 |
2270 |
1791 |
|
56 |
336 |
201.6 |
1220 |
1710 |
1710 |
2430 |
1926 |
|
58 |
348 |
208.8 |
1290 |
1810 |
1810 |
2600 |
2086 |
|
60 |
360 |
216 |
1380 |
1940 |
1940 |
2770 |
2249 |
|
62 |
372 |
223.2 |
1470 |
2060 |
2060 |
2940 |
2361 |
|
64 |
384 |
230.4 |
1560 |
2190 |
2190 |
3130 |
2516 |
|
66 |
396 |
237.6 |
1660 |
2310 |
2310 |
3300 |
2676 |
|
68 |
408 |
244.8 |
1750 |
2450 |
2450 |
3500 |
2885 |
|
70 |
420 |
252 |
1840 |
2580 |
2580 |
3690 |
3010 |
