HVG MARINE MOORING EQUIPMENT 0239

HVG MARINE MOORING EQUIPMENT 0239: Anchor Chain

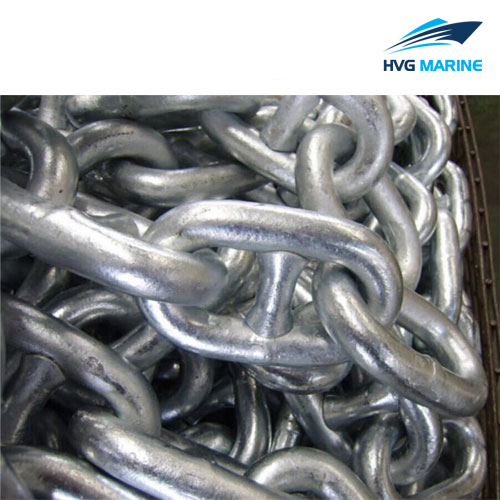

The anchor chains include stud link anchor chains and studless link anchor chains. We can customize products according to our customer’s special requirement. If you’re interested in our products, please feel free to contact us. We’ll give you a quick and satisfactory reply.

Product Detail

1.Material: CM490, CM690.
2.Size: 12mm-152mm.
3.Grade: U2, U3.
4.Surface: Self-colored, Black tarred Hot Dip Galvanized or as required
5.Certificate: LR, ABS, DNV, BV, NK, CCS etc.

Technical specification:

Testing Load of Stud Link Anchor Chains
Testing Load of Studless Link Anchor Chains

Diameter (mm)	Outside Length (mm)	Outside Width (mm)	U2		U3		Weight (KG/27.5M)
Diameter (mm)	Outside Length (mm)	Outside Width (mm)	Proof Load (KN)	Breaking Load (KN)	Proof Load (KN)	Breaking Load (KN)	Weight (KG/27.5M)
12.5	75	45	66	92	92	132	98
14	84	50.4	82	116	116	165	119
16	96	57.6	107	150	150	216	156
17.5	105	63	127	179	179	256	186
19	114	68.4	150	211	211	301	230
20.5	123	73.8	175	244	244	349	260
22	132	79.2	200	280	280	401	290
24	144	86.4	237	332	332	476	355
26	156	93.6	278	389	389	556	420
28	168	100.8	321	449	449	642	480
30	180	108	368	514	514	735	550
32	192	115.2	417	583	583	833	616
34	204	122.4	468	655	655	937	700
36	216	129.6	523	732	732	1050	790
38	228	136.8	581	812	812	1160	880
40	240	144	640	896	896	1280	1020
42	252	151.2	703	981	981	1400	1050
44	264	158.4	769	1080	1080	1540	1160
46	276	165.6	837	1170	1170	1680	1295
48	288	172.8	908	1270	1270	1810	1420
50	300	180	981	1370	1370	1960	1530

Diameter	M2		M3
Diameter	Proof Load	Breaking Load	Proof Load	Breaking Load
mm	KN	KN	KN	KN
50	584	1294	844	1960
48	838	1196	771	1810
46	494	1098	698	1680
44	452	1000	630	1540
42	412	915	597	1400
40	373	829	563	1280
38	337	749	501	1160
36	302	672	442	1050
34	270	600	386	937
32	239	531	335	833
30	211	468	311	735
28	183	407	286	642
26	158	351	241	556
24	135	299	210	476
