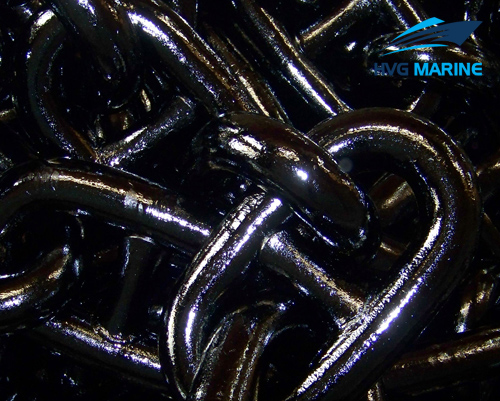

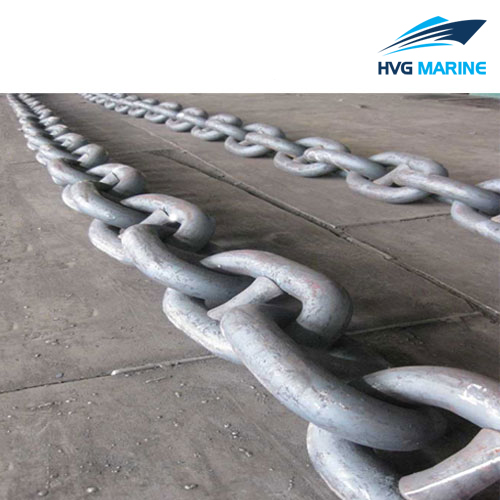

HVG MARINE MOORING EQUIPMENT 0212: 66mm R3S Mooring Chain
|
Chain Diameter |
R3 |
R3S |
R4 |
|||||
|
Stud/Studless Pull Load |
Breaking Load |
Studless Link Pull Load |
Stud Link Pull Load |
Breaking Load |
Studless Link Pull Load |
Stud Link Pull Load |
Breaking Load |
|
|
50 |
1560 |
2230 |
1740 |
1800 |
2490 |
1920 |
2160 |
2740 |
|
52 |
1681 |
2403 |
1875 |
1940 |
2683 |
2069 |
2327 |
2953 |
|
54 |
1806 |
2581 |
2014 |
2083 |
2882 |
2222 |
2500 |
3171 |
|
56 |
1934 |
2764 |
2157 |
2231 |
3086 |
2380 |
2677 |
3396 |
|
58 |
2066 |
2953 |
2304 |
2384 |
3297 |
2543 |
2860 |
3628 |
|
60 |
2202 |
3147 |
2456 |
2541 |
3514 |
2710 |
3049 |
3867 |
|
62 |
2342 |
3347 |
2612 |
2702 |
3737 |
2882 |
3242 |
4112 |
|
64 |
2485 |
3552 |
2771 |
2867 |
3966 |
3058 |
3440 |
4364 |
|
66 |
2632 |
3762 |
2935 |
3036 |
4200 |
3239 |
3644 |
4622 |
|
68 |
2782 |
3977 |
3103 |
3210 |
4440 |
3424 |
3852 |
4886 |
|
70 |
2936 |
4196 |
3274 |
3387 |
4686 |
3613 |
4065 |
5156 |
|
73 |
3173 |
4535 |
3539 |
3661 |
5064 |
3905 |
4393 |
5572 |
|
76 |
3417 |
4885 |
3812 |
3943 |
5454 |
4206 |
4731 |
6002 |
|
78 |
3584 |
5124 |
3998 |
4136 |
5721 |
4411 |
4963 |
6295 |
|
81 |
3841 |
5490 |
4284 |
4432 |
6130 |
4727 |
5318 |
6746 |
|
84 |
4104 |
5866 |
4578 |
4735 |
6550 |
5051 |
5682 |
7028 |
|
87 |
4374 |
6252 |
4879 |
5047 |
6981 |
5383 |
6056 |
7682 |
|
90 |
4651 |
6648 |
5187 |
5366 |
7423 |
5724 |
6439 |
8168 |
|
92 |
4838 |
6916 |
5397 |
5583 |
7723 |
5955 |
6699 |
8498 |
|
95 |
5125 |
7326 |
5717 |
5914 |
8180 |
6308 |
7096 |
9002 |
|
97 |
5320 |
7604 |
5934 |
6138 |
8491 |
6547 |
7366 |
9343 |
|
100 |
5616 |
8028 |
6264 |
6480 |
8964 |
6912 |
7776 |
9864 |
|
102 |
5817 |
8316 |
6712 |
6489 |
9285 |
8055 |
7160 |
10217 |
|
105 |
6123 |
8753 |
7065 |
6830 |
9774 |
8478 |
7536 |
10755 |
|
107 |
6330 |
9049 |
7304 |
7061 |
10104 |
8765 |
7791 |
1118 |
|
111 |
6751 |
9650 |
7789 |
7530 |
10775 |
9374 |
8309 |
11857 |
|
114 |
7072 |
10109 |
8160 |
7888 |
11288 |
9792 |
8704 |
12421 |
|
117 |
7398 |
10575 |
8536 |
8251 |
11808 |
10243 |
9105 |
12993 |
|
120 |
7728 |
11047 |
8917 |
8620 |
12335 |
10700 |
9511 |
13573 |
