HVG MARINE MOORING EQUIPMENT 0099

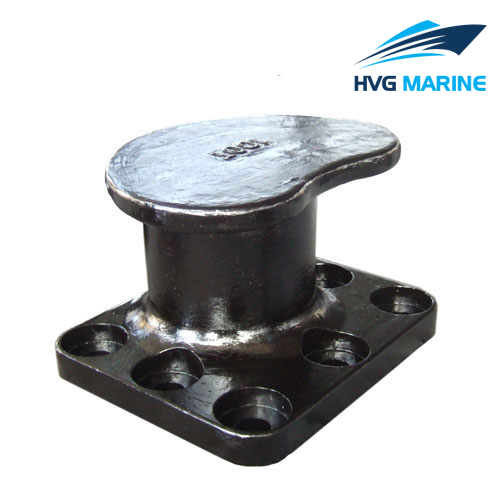

HVG MARINE MOORING EQUIPMENT 0099: Kidney Bollard

Kidney shaped bollard is one type of dock bollards which is for secure mooring. We also provide other types of mooring bollards: Tee head bollard, staghorn bollard, R type bollard, J type bollard, CVI-bollard, cross bollard, welded inserted bollard, JIS F-2001 double bollard, DIN82607 double bollard and so on. Customized products according to customer’s special requirements. For specific information, please feel free to contact us.

Features of Kidney Bollard

1. Kidney shaped bollard;
2. Bollard Capacity: 15 to 200tonnes;
3. Bolts Quantity: 4 to 8;
4. Material: Cast iron, cast steel, cast SG iron;
5. Paint System: yellow, black, grey etc.
6. Surface:polished, galvanized
7. Guarantee: 1 year
8. Certificate: CCS,ABS,GL, NK etc.
9. Can be customized

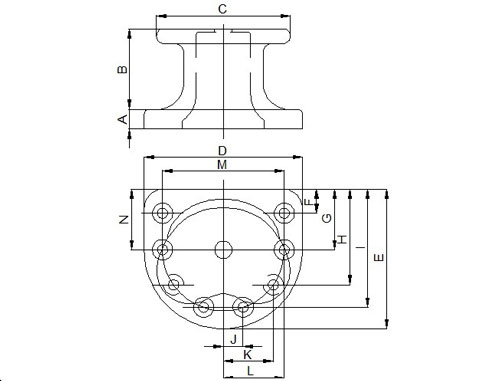

Drawing of Kidney Bollard

Technical specification:

Technical specification

Dimensions(mm)	Standard Bollard Capacity (Metric Tonnes)
Dimensions(mm)	15	20	30	50	75	100	125	150	200
A	41	51	54	60	70	79	89	95	111
B	194	216	257	264	298	340	375	410	457
C	275	330	385	413	481	550	605	660	759
D	325	390	455	488	569	650	715	780	897
E	288	345	402	431	503	575	632	690	793
F	50	60	70	75	88	100	110	120	138
G	–	–	–	–	238	272	299	326	345
H	–	213	258	226	381	436	479	523	543
I	213	300	350	353	438	500	550	600	671
J	88	0	0	88	0	0	0	0	112
K	–	136	154	183	146	167	184	201	283
L	–	–	–	–	218	249	274	299	345
M	250	300	350	375	438	500	550	600	690
N	125	150	175	188	219	250	275	300	345
Bolt Size	M24	M24	M30	M36	M36	M42	M48	M56	M56
Bolt Length	450	450	450	600	600	600	750	915	915
Bolt Quantity	4	5	5	6	7	7	7	7	8
