HVG MARINE MOORING EQUIPMENT 0045

HVG MARINE MOORING EQUIPMENT 0045: Marine Quick Release Disc Towing Hook

Marine towing hooks are various in types and sizes. Disc towing hook is one common type of towing hooks and widely applicable to ship mooring and towing. Comparing to the traditional marine bollards, quick release towing hook not only reduces the labor intensity but also improve the labor efficiency, the safety and the reliability.

We supply both manual release and pneumatic release towing hooks. For more details, please do not hesitate to contact us. We’re sincere to establish cooperation relationship with you.

Specification:

1. Type: Disc Type
2. Control System: Manual Control or Remote Control
3. Safe Working Load: 15ton to 100ton
4. Material:Steel
5. Movement: Side Movement
6. Usage: Mooring and Towing
7. Application: Harbor, Dock, Vessel, Ship
8. Color: Yellow, Red, Black as required
9. Durable, Long Lifetime
10. High Quality with Competitive Price
11. Certificate: ABS, CCS, BV, LR, NK, DNV etc.
12. Customized Sizes or Types

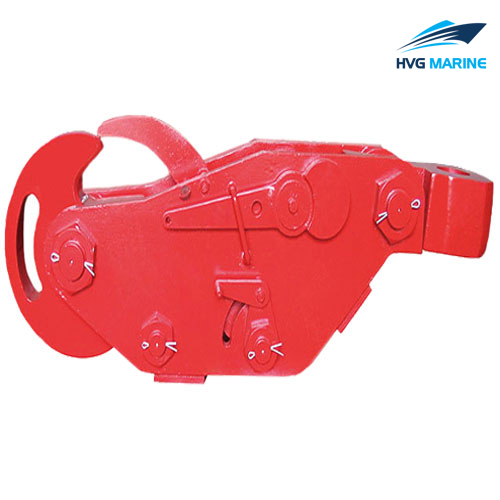

Marine Quick Release Disc Towing Hook

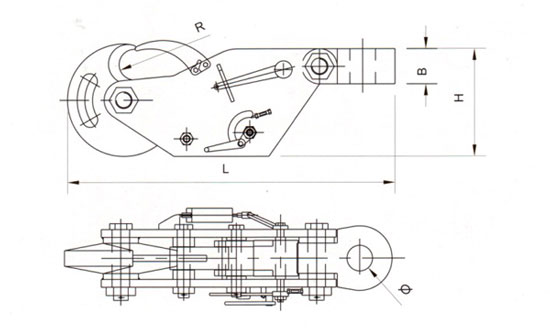

Technical specification:

Specification:

SWL (t)	H (mm)	L (mm)	B (mm)	Ф (mm)	R (mm)
15	310	1050	110	75	50
20	360	1190	130	85	60
30	390	1215	140	90	60
40	430	1460	150	100	65
50	560	1660	180	130	75
60	570	1700	190	130	80
80	590	1800	200	140	80
100	620	1920	220	150	88
