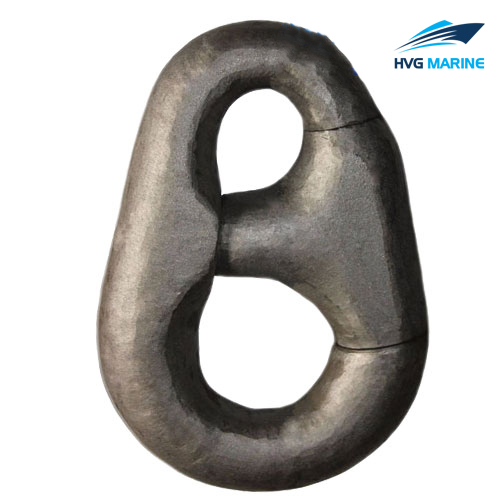

    HVG MARINE MOORING EQUIPMENT 0034: Pear Shaped Anchor Shackle

    Pear shaped anchor shackle is one type of kenter shackle. It is used to connect the swivel end of the chain cable to the anchor shackle. This type of shackle is detachable and is easy to be disassembled and assembled. For its lightness and simple operation, this pear shaped anchor shackle are used widely, replacing the Kenter anchor shackle.

    We supply a large scope of marine equipment. Except anchor shackle, we also sell other types of anchor chain accessories and marine equipment. For more detail information, please feel free to contact us.We’ll reply you as soon as we could.

    Specification

    • 1. Model Type: Pear Shaped Anchor Shackle
    • 2. Anchor Chain Accessories
    • 3. Material: Forged Steel
    • 4. Grade: U1, U2,U3/R3,R4
    • 5. Treatment: Drop Forged, Cast
    • 6. Surface: Black Paint/ Galvanized
    • 7. Different Sizes Available
    • 8. Certificate: ABS, CCS, KR, GL, BV, DNV,RINA etc.
    • 9. Can be Customized

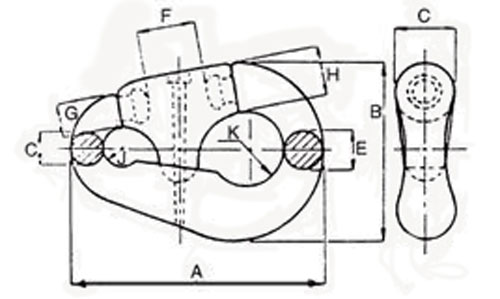

    Drawing of Pear Shaped Anchor Shackle



    Technical specification:

    • Specification

    Chain Size(mm)

    A

    B

    C

    D

    E

    F

    G

    H

    J

    K

    Weight(kg)

    Proof Test(kg)

    Break Test(kg)

    19-24

    194

    132

    38

    24

    32

    57

    24

    35

    17

    30

    3.6

    34000

    48500

    25-30

    238

    167

    46

    30

    38

    66

    33

    45

    19

    35

    6.5

    53000

    75700

    32-40

    299

    206

    59

    40

    48

    83

    40×45

    56

    26

    43

    14.5

    914000

    131000

    42-51

    378

    260

    76

    51

    64

    100

    51×60

    74

    32

    52

    27.0

    145400

    207700

    52-60

    454

    313

    92

    60

    76

    121

    62×73

    88

    37

    64

    49.0

    199600

    285200

    62-79

    562

    376

    121

    79

    95

    149

    86×79

    111

    48

    76

    92.0

    332100

    474500

    81-92

    654

    419

    133

    92

    124

    149

    111×102

    130×133

    54

    79

    149.0

    434900

    621200

    94-95

    692

    435

    146

    98

    130

    159

    124×137

    141

    57

    83

    236.0

    462300

    660100

    97-102

    889

    572

    191

    121

    165

    191

    130×148

    181

    73

    108

    386.0

    522100

    746000

    103-108

    940

    610

    203

    127

    175

    203

    156

    200

    76

    111

    418.0

    577000

    825100

    110-114

    991

    948

    216

    133

    184

    216

    165×167

    210×200

    105

    114

    459.0

    637300

    910900
