HVG MARINE MOORING EQUIPMENT 0001

HVG MARINE MOORING EQUIPMENT 0001

HVG MARINE MOORING EQUIPMENT 0001: Recessed Bitts

1. Inset into the ship’s hull
2. Material: High Quality Steel
3. Nominal Sizes: 850mm,920mm
4. Application: commonly used on vessels using the Panama and Suez Canal or where the rope needs to be attached to a ship’s hull without any protrusion.

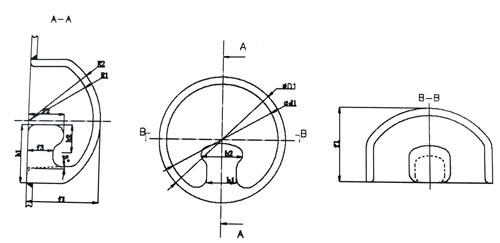

Drawing of Recessed Bitts

Technical specification:

Specifications (Unit:mm)

Nominal Size Dn	D1	d1	b1	b2	R1	R2	f1	f2	f3	h1	h2	type	Material	SWL KN	Calculated Weight (KG)
850	850	750	200	280	450	500	500	250	180	400	190	75	235N/mm²	736	770
850	850	750	200	280	450	500	500	250	180	400	190	110	350N/mm²	1079	770
850	850	750	200	280	450	500	500	250	180	400	190	135	430N/mm²	1324	770
920	920	812	216	300	490	544	544	270	195	430	205	100	235N/mm²	981	826
920	920	812	216	300	490	544	544	270	195	430	205	150	350N/mm²	1472	826
920	920	812	216	300	490	544	544	270	195	430	205	180	430N/mm²	1766	826
