HVG MARINE ELECTRIC EQUIPMENT 0215

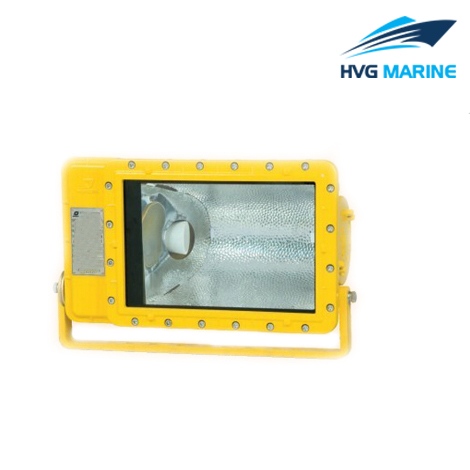

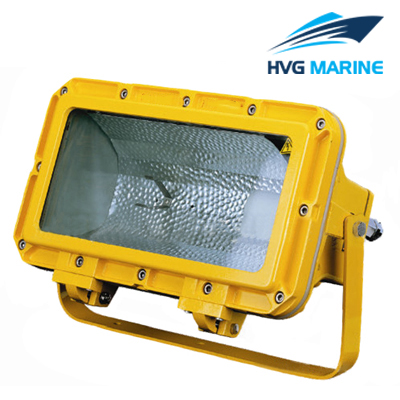

HVG MARINE ELECTRIC EQUIPMENT 0215: Flameproof Explosion-proof Flood Light

Marine flameproof explosion-proof flood light is made of high quality cast aluminum, and the lampshade is made of toughened glass. The lamp body can be adjusted up and down 45 degrees. It adopts seal structure, which make it has high waterproof performance and anticorrosive perfoemance. It is equipped with ballast inside, and don’t need other ballast box.

Product Details:

Type: CFT2
Explosion-proof mark: ExdⅡBT3, ExdⅡBT2
Voltage: 220V/50HZ, 220V/60HZ, 110V/60HZ
Rate of Power:250W, 400W
Light Source: metal halide lamp
Lampholder: E40
Protection Class: IP56
Weight: 24.5kg
Cable outside diameter: Φ11-Φ13

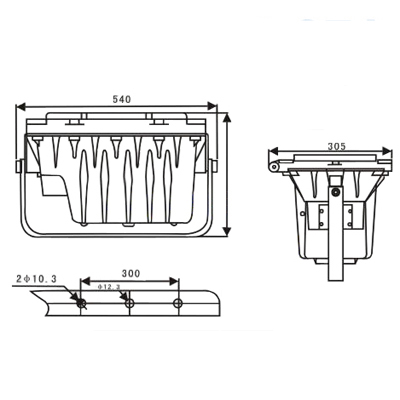

Technical specification:

Specification:

Type	Explosion-proof mark	Voltage	Power	Luminous flux	Illuminant	Protection class	Weight
CFT2	Exd ⅡBT3	220V/50HZ 220V/60HZ 110V/60HZ	250W	26000	High-pressure sodium lamp	IP56	24.5kg
				20500	Metal halide lamp
	Exd ⅡBT2		400W	47000	High-pressure sodium lamp
				36000	Metal halide lamp
