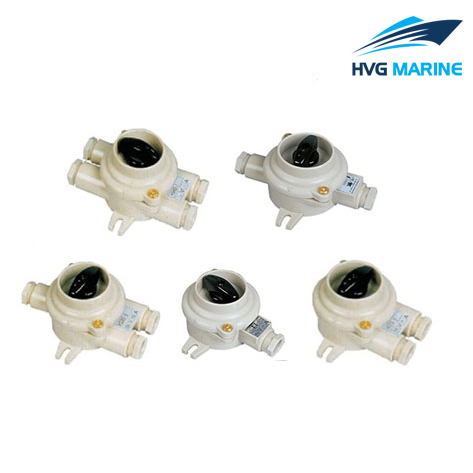

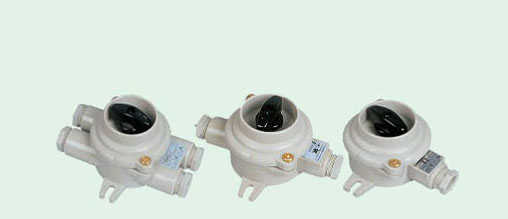

HVG MARINE ELECTRIC EQUIPMENT 0184: Marine Nylon Switch
Marine Nylon Switch is used for connecting cutting on or off the appliance circuit with AC or CD low-voltage.The protection class is IP56.The adopted standard is DIN89270.There are five types as follows:
Technical Parameter :
| Code | Type | Rating voltage | Weight |
| 1133\FS | HS101-1\2\3\4\5 | 24V\125V\250V\(380V\440V)\(380V\440V) | 0.22kg |
| Code | Type | Rating voltage | Weight |
| 1133\D\FS | HS201-1\2\3\4\5 | 24V\125V\250V\(380V\440V)\(380V\440V) | 0.23kg |
| Code | Type | Rating voltage | Weight |
| 1133\2\FS | HS202-1\2\3\4\5 | 24V\125V\250V\(380V\440V)\(380V\440V) | 0.23kg |
| Code | Type | Rating voltage | Weight |
| 1133\3\FS | HS302-1\2\3\4\5 | 24V\125V\250V\(380V\440V)\(380V\440V) | 0.24kg |
| Code | Type | Rating voltage | Weight |
| 1133\2D\FS | HS402-1\2\3\4\5 | 24V\125V\250V\(380V\440V)\(380V\440V) | 0.25kg |
