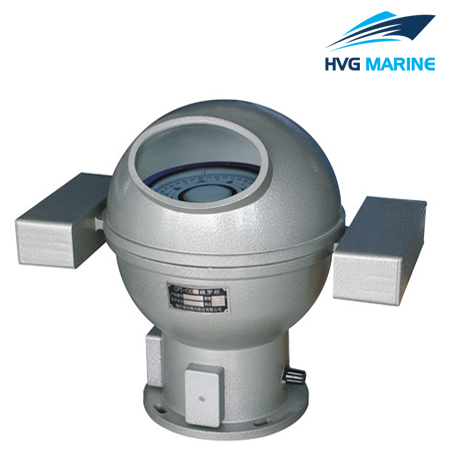

HVG MARINE ELECTRIC EQUIPMENT 0130: CPT-130B Table Model Marine Liquid Compass

CPT-130B Table Model Marine Liquid Compass belongs to liquid compass. It is manufactured under exacting standards, so the quality of this compass is guaranteed. This compass has advantages of compact in construction, light in weight, easy in installation and high in reliability. For more specific information, please email us.

Features

Easy in installation
High sensitivity
With illumination

Technical specification:

Specifications

Project	Data
Dial Diameter	Φ 130mm
Dial Graduation	0°-360°, 1° for each grid
Operation Temperature	-20°C~+60°C
Indicating Deviation(H=35µ T, T=20±3°C)	≦1.5°
Half Period (H=34µ T, T=20±3°C)	≧5.59S
Friction Deviation (H=34µ T, T=20±3°C)	≦0.26°
Main Semicircle Self Heterodyne Correcting Energy	1°~ 40°
Quadrant Self Heterodyne Correcting Energy	1°~5°
Lighting Power	DC 24V
Outline Dimension	380×240×330mm

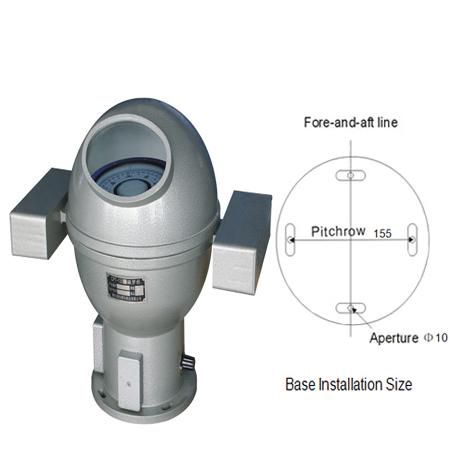

Diameter of Mounting Holes	pitchrow 155, aperture Φ10
Weight	5.5KG
