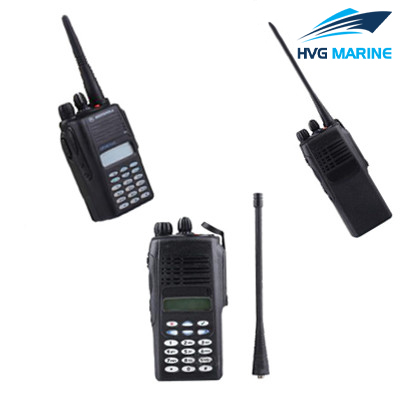

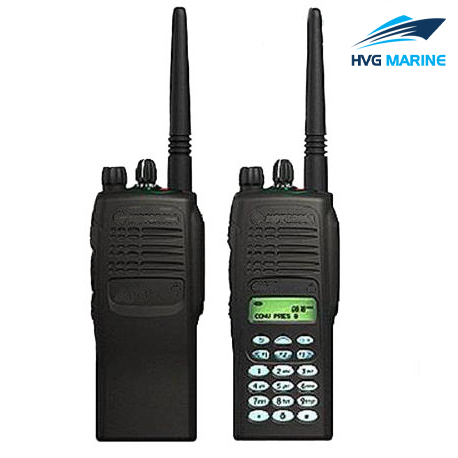

HVG MARINE ELECTRIC EQUIPMENT 0104: Marine Explosion-proof Two Way VHF Radiophone
It is a fully featured GMDSS survival radio with user-friendly design and features. It is designed to meet the latest GMDSS and ETSI standards. Reliable and easy to use, it meets the military standard (MIL) 810C, D, E, and F. With explosion-proof and waterproof function, it can be used in the tough marine environment.
| Product parameter: | |
| Frequency range | 136-174MHz/330-400MHz/403-470MHz/450-527MHz |
| Number of channel | 128 channels |
| Channel spacing | 12.5/22/25KHz |
| Sensitivity | (12dB SINAD) EIA 0.25μV |
| Frequency stability | (-30～60℃, 25℃Ref.)+/-0.00025% |
| Intermodulation EIA | 70dB |
| Launching output power | 1W～5W |
| Adjacent channel sensitivity | [email protected], 70dB@25KHz |
| Modulation limiting | ±[email protected], ±4.0@20KHz |
| FM noise | ≤-40dB |
| Rated audio | 500mW |
| Audio distortion | 3% |
| Audio response | 300-3000MHz, +1～-3dB |
| Spurious rejection | 70dB |
| Dimension (H× W ×D)mm | 137×57.5×40.0 |
| Standard | MIL STD810C/D/E, TIA/EIA603, IP54 |
