    HVG MARINE ELECTRIC EQUIPMENT 0091

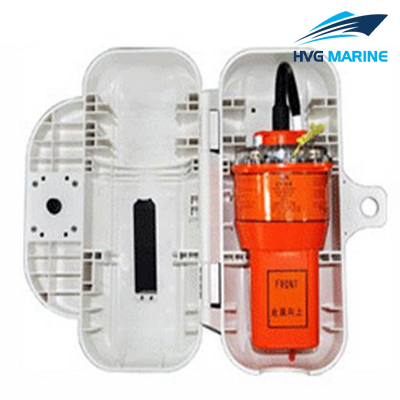

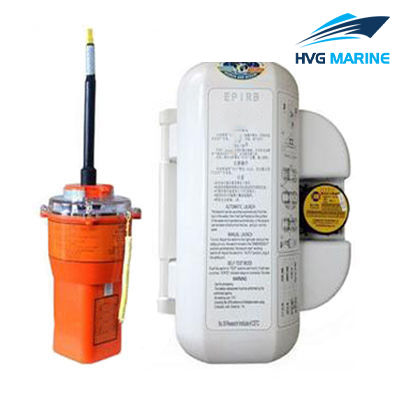

    HVG MARINE ELECTRIC EQUIPMENT 0091: EPIRB

    When the vessel is in distress, the EPIRB will be automatically ejected from the release device and transmit 406MHz emergency signal. After received by the system satellite Cospas or Sarsat, the signal will be communicated to the shore-based terminal. Then LUT (Local User Terminal) will decoding and analyze the position and conveys it to the RCC (rescue center) in order to implement the emergency. This emergency position indicating radio beacon designed according to the latest national and international standards for domestic and international various vessels.

    Features:

    • Class: 2
    • EPIRB is designed for operation within the COSAPS－SARSAT international satellite system
    • It fully meets the latest issues of COSAPS－SARSAT technical specification and is recommend by IMO
    • Years of innovation in 406MHz COSAPS－SARSAT technology have allowed to develop the smallest EPIRB with ultra low power consumption.
    • 5 years warranty

    Technical specification:

    • Main technique data:
    • 406 MHz satellite transmitter:
    • 121.5 MHz find bits transmitter:
    • GPS satellite positioning system
    • Recognized standards:
    • Activation method: Automatic and manual
    • Operating temperature range: -20 °C ~ +55 °C
    • Storage temperature range: -40 °C ~ +65 °C
    • Battery: 2 Lithium cells of D Size, 4 years warranty
    • Operation hours: -20℃48 hours or +20℃80hours
    • Outer shell: ABS plastic
    • Size: φ140/231.5mm (not contain antenna)
    • Weight: <1.7kg
    • Lighting: 20 times per minute (minimum 0.75 cd)
    • Output frequency: 406.028MHz ± 1 KHz
    • Output power: 5W (37dBm) ± 2dB
    • Phase modulation: peak 1.1rad ± 0.1rad
    • Encoding: biphasic L coding
    • Output frequency: 121.5MHz ± 3 KHz
    • Output power: > 50mW (+17dBm)
    • Phase manner: A3X
    • Transmit duty cycle: 100% (continuous emission)
    • Receive Channel: 50
    • Sensitivity:-160dBm
    • Positioning accuracy: 2.5m
    • Hot start: <1s
    • Antenna Vertical Whip

    CCS, IEC 61097-2-2008, IMO A.810-19, C/S T.001, T.007, IEC 61097, IEC 60945, ETSI EN 300 00
