HVG MARINE ELECTRIC EQUIPMENT 0052: 10.4-Inch Marine TFT Radar

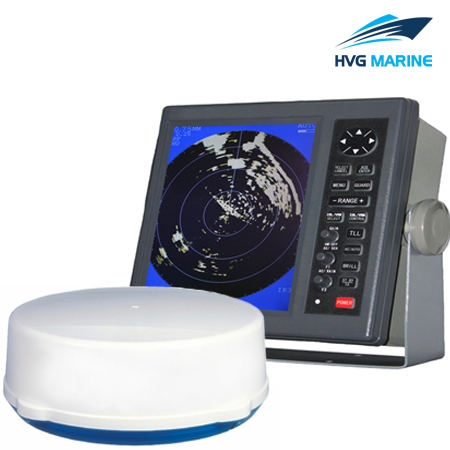

10.4-Inch Marine TFT Radar adds a new function of AIS, and this function makes your voyage safer. Compared with traditional radar, this radar provides a clearer image for operator. It employs a power-saving mode, and simple ARPA function. All of them is aim to reduce consumption in every aspects. Three are two models provided: KR-1338C, KR-1668C. If you want to know more details,please contact us.

Features

New AIS function
Waterproof shell
Various background colors supported
High power output
Clearer radar images

Technical specification:

Specifications

Project	Data
Antenna Radiator	Type	KR-1338C: 55cm slotted waveguide display
	Type	KR-1668C: 120cm slotted waveguide display

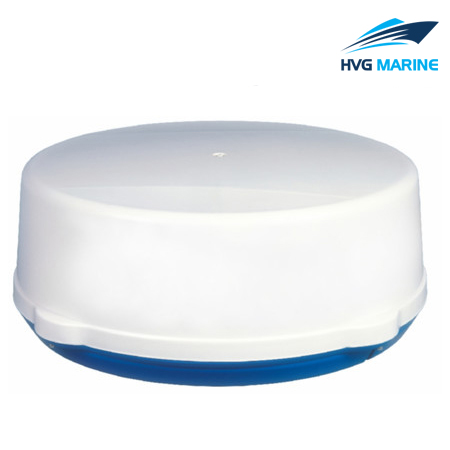

	Length and Speed	KR-1338C: radome 60cm (KRA-1002) 24rpm KR-1668C: open array 120cm (KRA-1003) 24rpm
	Wind Load Capacity	relatively wind load 100 knots
	Beamwidth	KRA-1002 Hor: 4°, Vert:25°
RF Transceiver	Frequency	9410±30MHz X-band
	Peak Output Power	4KW
	Modulation Mode	field-effect tube switch mode
	Intermediate Frequency	60MHz
	Bandwidth	25MHz(0.08,0.3µs), 3MHz(0.8µs)
	Noise	10dB

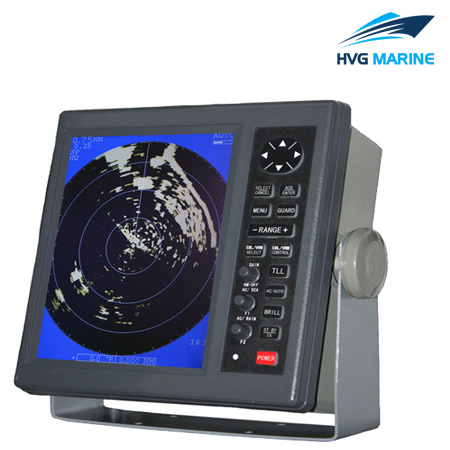

Display Unit	Type	10.4’’ TFT LCD
	Display Modes	head-up, course-up, north-up, true motion** (heading input required, *heading and speed inputs required)
	Range Scales	Range:0.125,0.25,0.5,0.75,1,1.5,2,3,4,6,8,12,16,24,38 Range Ring:0.0625,0.125,0.125,0.25,0.25,0.5,0.5,1,1,2,2,3,4,6,12
	Echo Trail	Interval: 15s, 30s, 1min,3min, 6min, 15min, 30min, or continuous
	Interface	NMEA0183
	External AIS Function	showing AIS information in real time
Temperature	Display Unit	-15-+55℃
Temperature	Antenna	-25℃-+70℃
Power Supply	DC 10.5-40.0V, 60W (30W in economy mode)
