    HVG MARINE ELECTRIC EQUIPMENT 0039

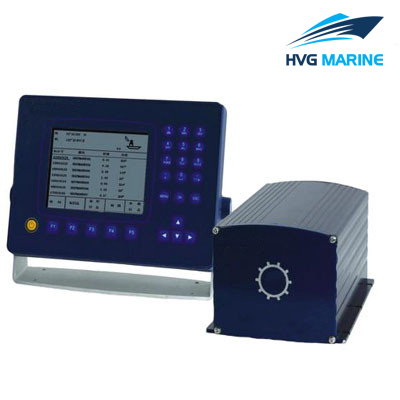

    HVG MARINE ELECTRIC EQUIPMENT 0039: 5.7-inch HD FSTN LCD Marine AIS

    Features:

    • AIS Class-A standard
    • Automatically operating and connecting AIS wireless network without human intervention
    • Providing 8 RS422 serials, complying with NMEA-0183 standard
    • 8～28VDC power supply
    • Max. instantaneous power less than 40W, average power consumption no more than 2W
    • Compact aluminum case with good tightness and heat dispersion making it enables to work in the hazard marine environment for a long time
    • Light weight and easy to install, less than 3.5kg
    • Dimensions: 280(mm)x160(mm)x125(mm)
    • International standard data interface
    • 5.7-inch HD FSTN LED LCD, Chinese/English display interface

    Technical specification:

    • VHF
    • Built-in DSC Unit
    • Power supply
    • Environment

    1. Frequency range: 156.025MHz to 162.025MHz

    2. Channel bandwidth: 25KHz/12.5KHz

    3. Transmitting power: 12.5W/2.5W

    4. Receiving sensitivity: -107dBm

    5. Modulation type: GMSK/FM

    6. VHF antenna connector: BNC

    7. Output impedance: 50Ω

    8. Frequency stability: ≤5ppm

    9. Spurious response rejection: 70dB

    1. Type: 12 channels GPS receiver

    2. Updating rate: 1s

    3. Position accuracy: <10m

    4. GPS antenna connector: TNC

    1. Output voltage: 24VDC(+30%～-10%)

    2. Power consumption: 12W (receiving), 40W(transmitting)

    1. Operating temperature: -15℃ to +55℃

    2. Storage temperature: -30℃ to +70℃

    3. Vibration/EMC: IEC 60945
